OVERVIEW

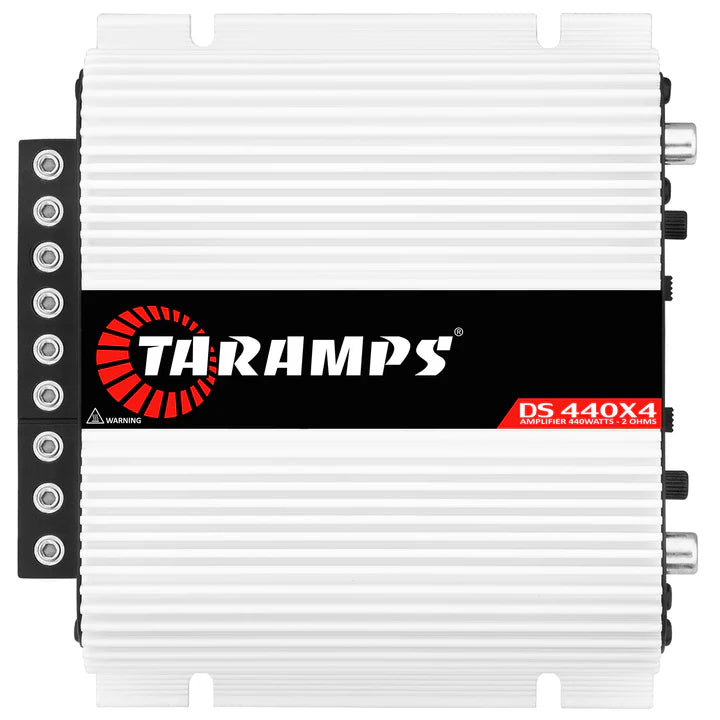

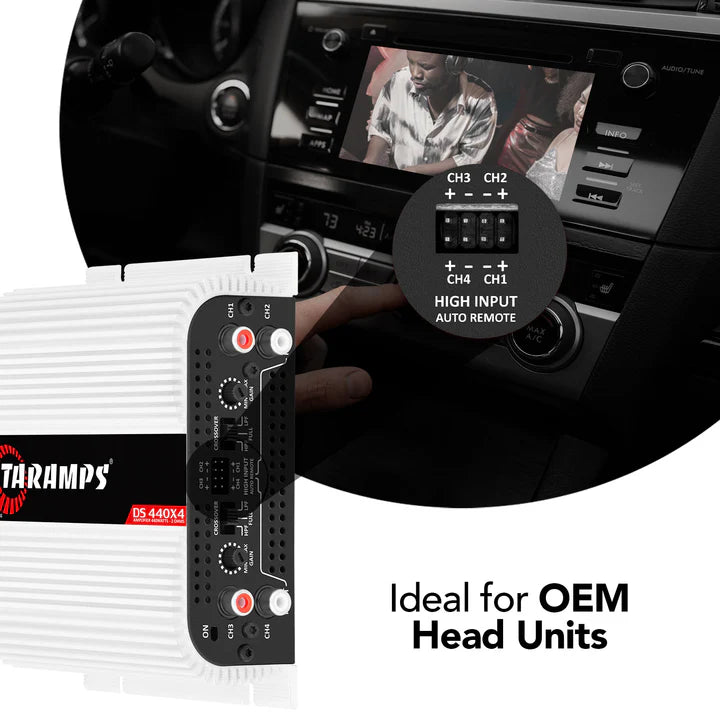

The DS 440x4
SEE IT IN ACTION
DS 440x4 — official video
FEATURES
Superior versatility

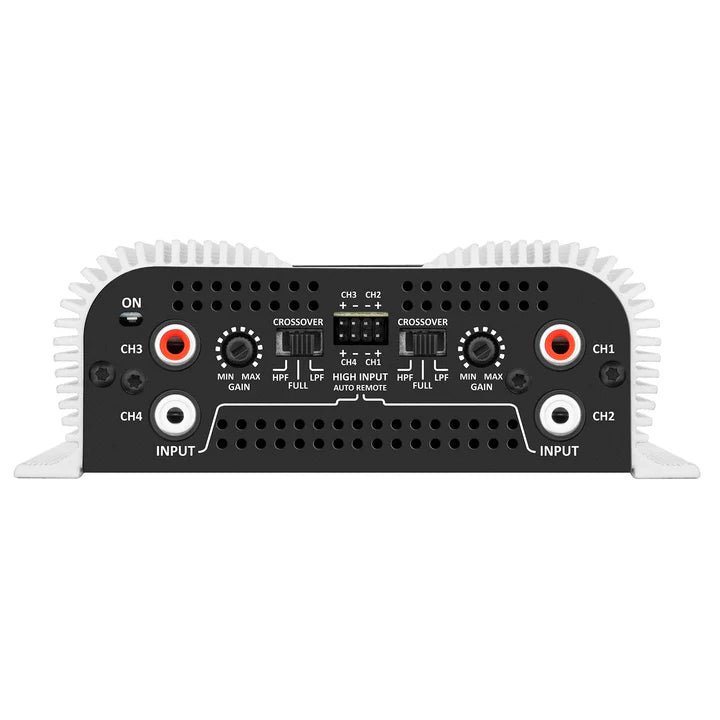

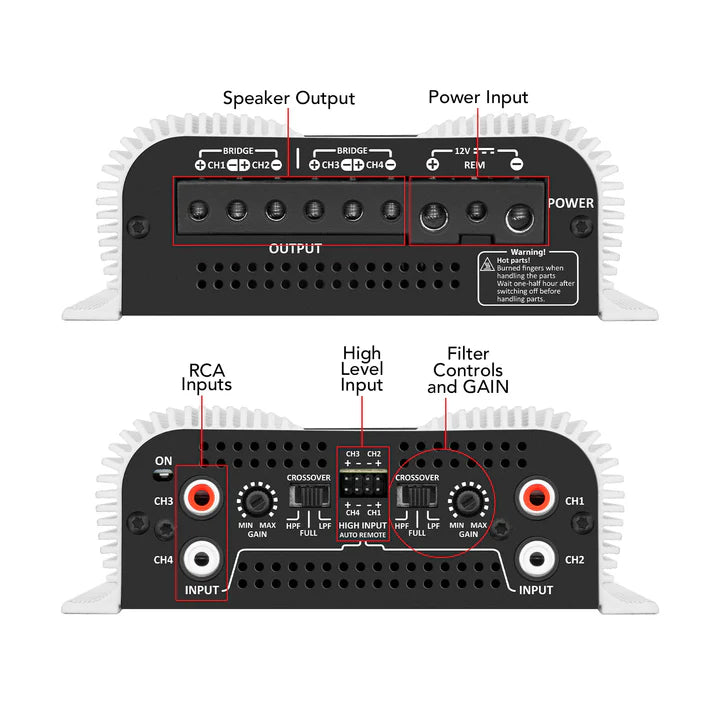

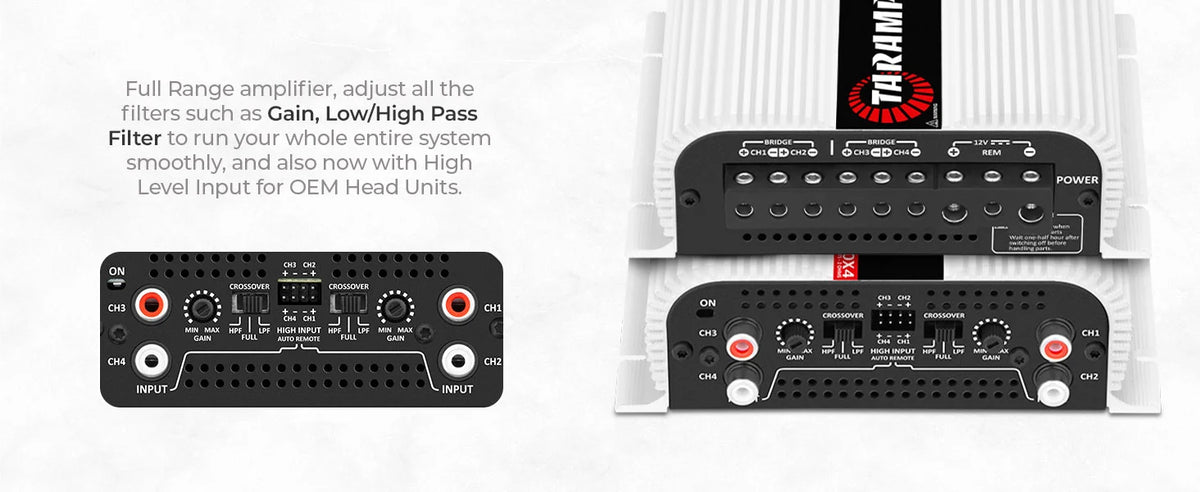

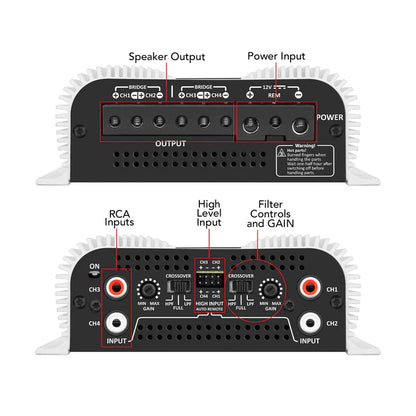

Functions and Inputs

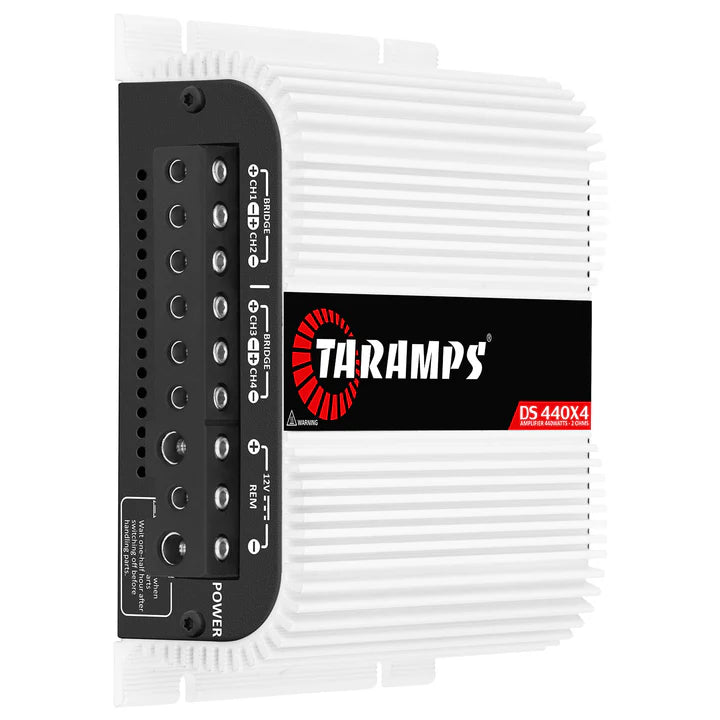

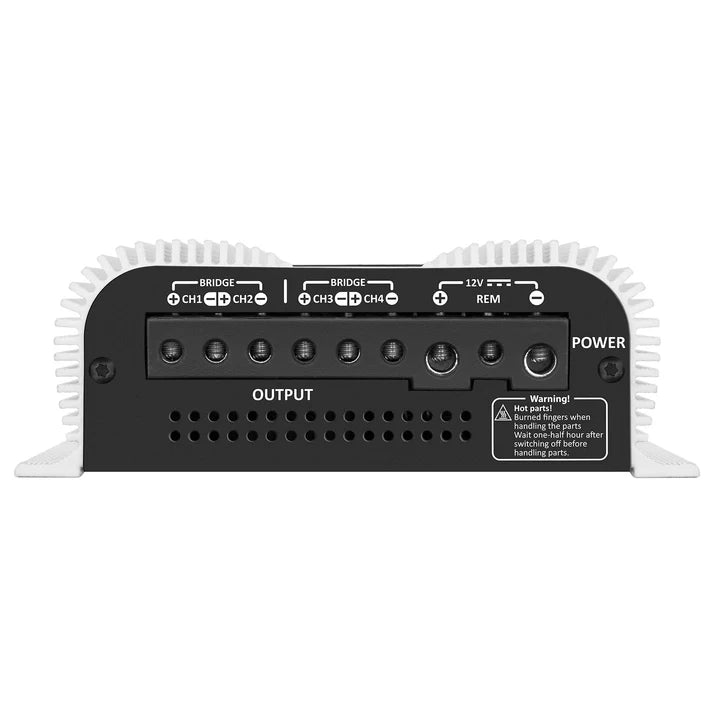

Output and Power Supply Connector

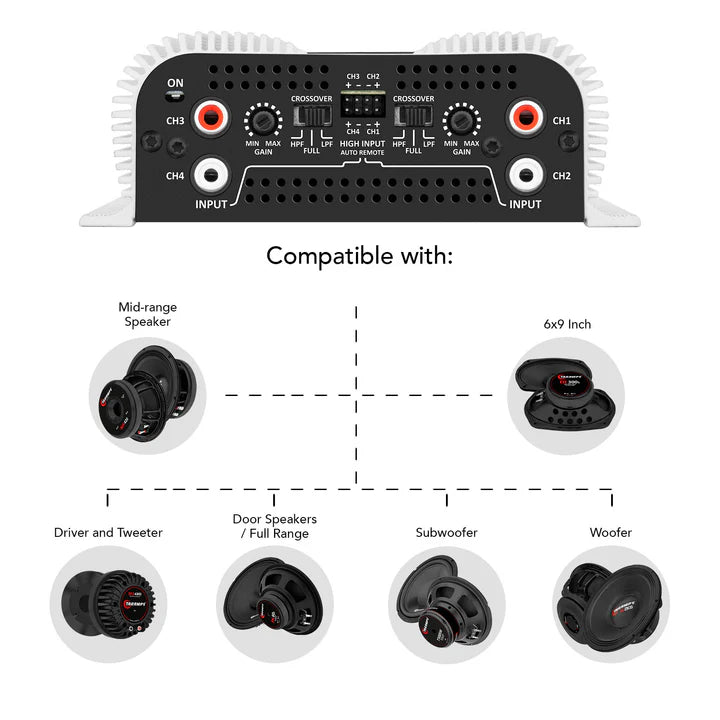

FIT & COMPATIBILITY

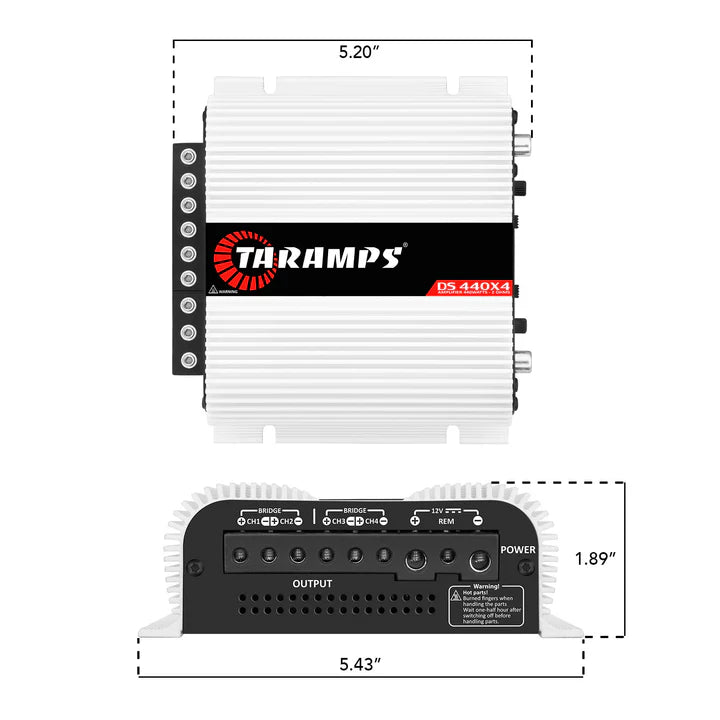

Dimensions & compatibility
SPECS & DOWNLOADS
Technical specifications

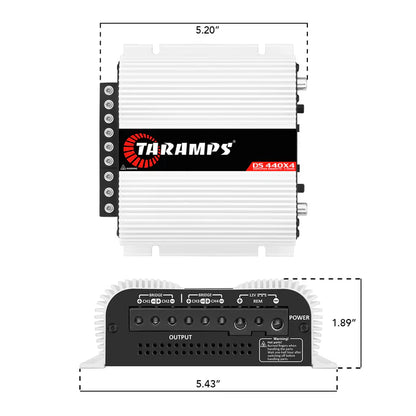

DIMENSIONS
5.43" x 1.89" x 5.20" (138 x 48 x 132 mm)
POWER
440 Watts
CONNECTIVITY
4
OPERATION CLASS
D
NUMBER OF CHANNELS
4
INPUT SENSITIVITY
(RCA): 4V (min.) / 250mV (max.) | (WIRE): >10V (min.) / 3V (max.)
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
8Hz ~ 25KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8ª) Fixed
CROSSOVER LOW PASS (LPF)
90Hz (-12dB/8ª) Fixed
INPUT IMPEDANCE
10K Ohms (RCA)
OUTPUT IMPEDANCE
2 Ohms
PROTECTION SYSTEM
Output Short-circuit
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
0.7A
MAXIMUM MUSIC CONSUMPTION
@12.6VDC: 23A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
46A
WEIGHT
1.39 lb (0.63 Kg)
EAN
7908706600728
CUSTOMER REVIEWS
11 five-star reviews from real buyers
Pulled from our Amazon storefront (Motiv Group) for this exact product. Names and dates as posted.
★★★★★
Unbelievable power in a tiny package.
This thing is SMALL. Like about the size of a CD case. Puts out great clean power that rivals amps much bigger. However, know what you are buying here. This amp has virtually no signal processing. It does have a HP/AP/LP filter, but there is no cutoff adjustment. That'"'"'s means you have to have good upstream processing from either a DSP or Aftermarket head unit that gives you good control with equalizers and crossovers built in. Otherwise it sounds very "raw." It puts out what you put into it. Many of the other more expensive amps have a lot of adjustments you can make, making them more suitable to just casually dropping into your car. This strips all those fancy signal processing features to make it tiny and inexpensive, assuming you will have those features elsewhere.
★★★★★
Absolute Beast in a Small Package
I’ll be honest — I didn’t expect this much out of such a compact amp. Hooked it up to a set of JBL 6x9s and they got LOUD. Crystal clear, clean power, and it stays cool while doing it. No fake numbers here — this thing delivers exactly what it says and then some. The footprint is tiny, the install was simple, and it pushes real power without killing my electrical. For the size, price, and performance, I couldn’t be more impressed. If you’re on the fence, don’t be — this little thing is a monster.
★★★★★
Awesome little amp!
I'"'"'m running this amp to my highs and honestly right off the bat, I was shocked at how small the amp is. It had me a little scared of how the power would be out of it but this thing is great! The small size of it makes it nice to be able to tuck away and not be taking away space from anywhere to have it. The sound quality is nice and clear, and I'"'"'m only running it at around 60-70 watts. Only thing I would say is don'"'"'t go to big on the wiring kit. Maybe keep it to around a 10 gauge kit because the connections are somewhat small.
★★★★★
WOW!!! I cant believe this tiny thing.
For the size and cost WOW!!! I have this in my work van. Its running channels 1 and 2 stereo at 2 ohms and a 8" Rockville in a ported box Channel 3 and 4 Bridged at 4 ohms. I'"'"'m using hipass on 1 and 2 low pass on 3 and 4. Williston audio labs on you tube dynode this amp. It does what is says it does.
★★★★★
Thumb up
item itself has a very small footprint, at first i was like what did i just buy. I was small enough i was able to fit it under my radio in the dash. After install i was satisfied with sound. i ran into some clipping issues but i can not blame that on the amp at least not as of yet.
★★★★★
Banging amp!
Tiny little thing that delivers a punch! Sounds good for 99% of setups, unless you'"'"'re a audiophile with an ultra quiet car, you'"'"'ll never hear the subtleties in the difference of a car amp A/B Vs D class. So take the advantage of it being so small, lightweight and powerful!
