OVERVIEW

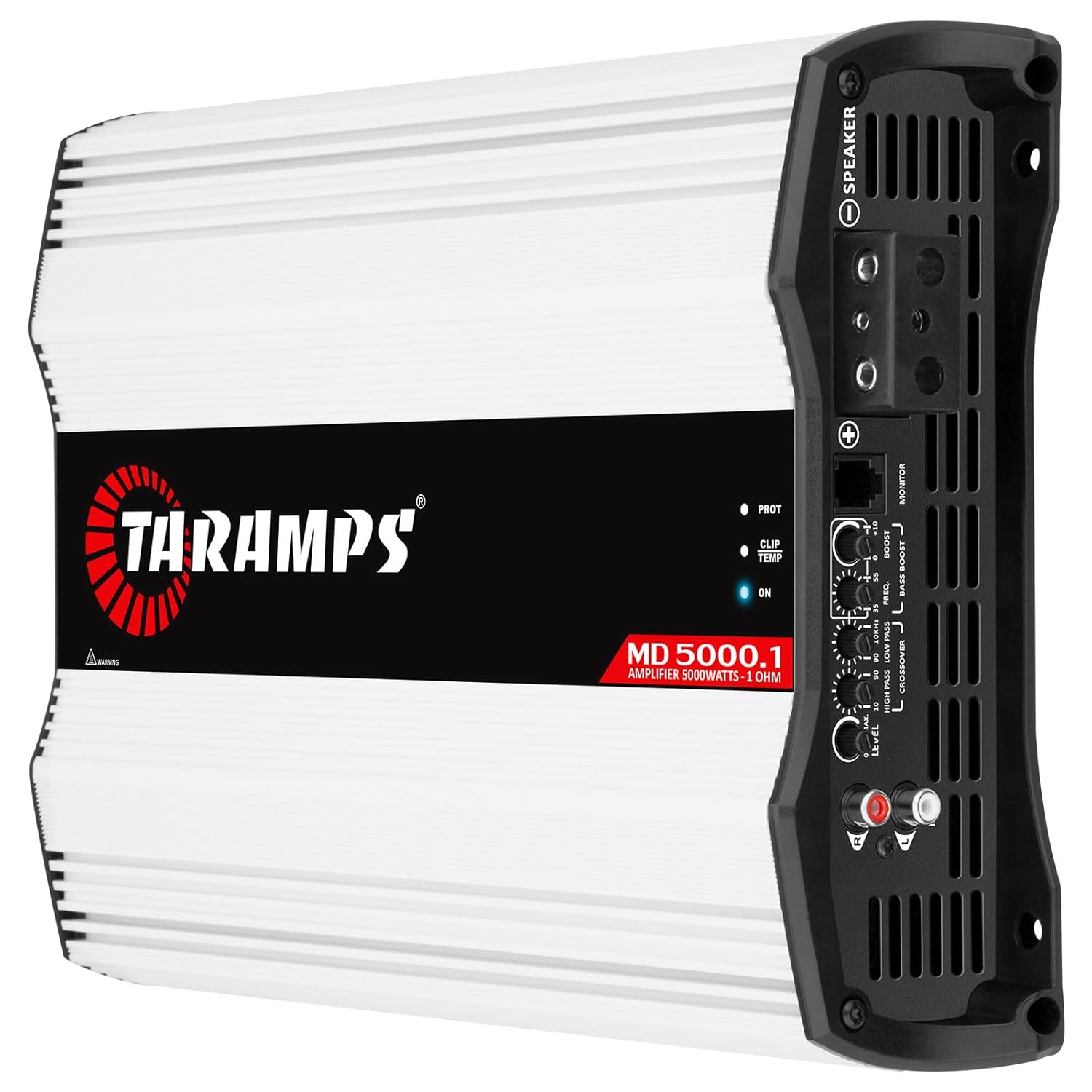

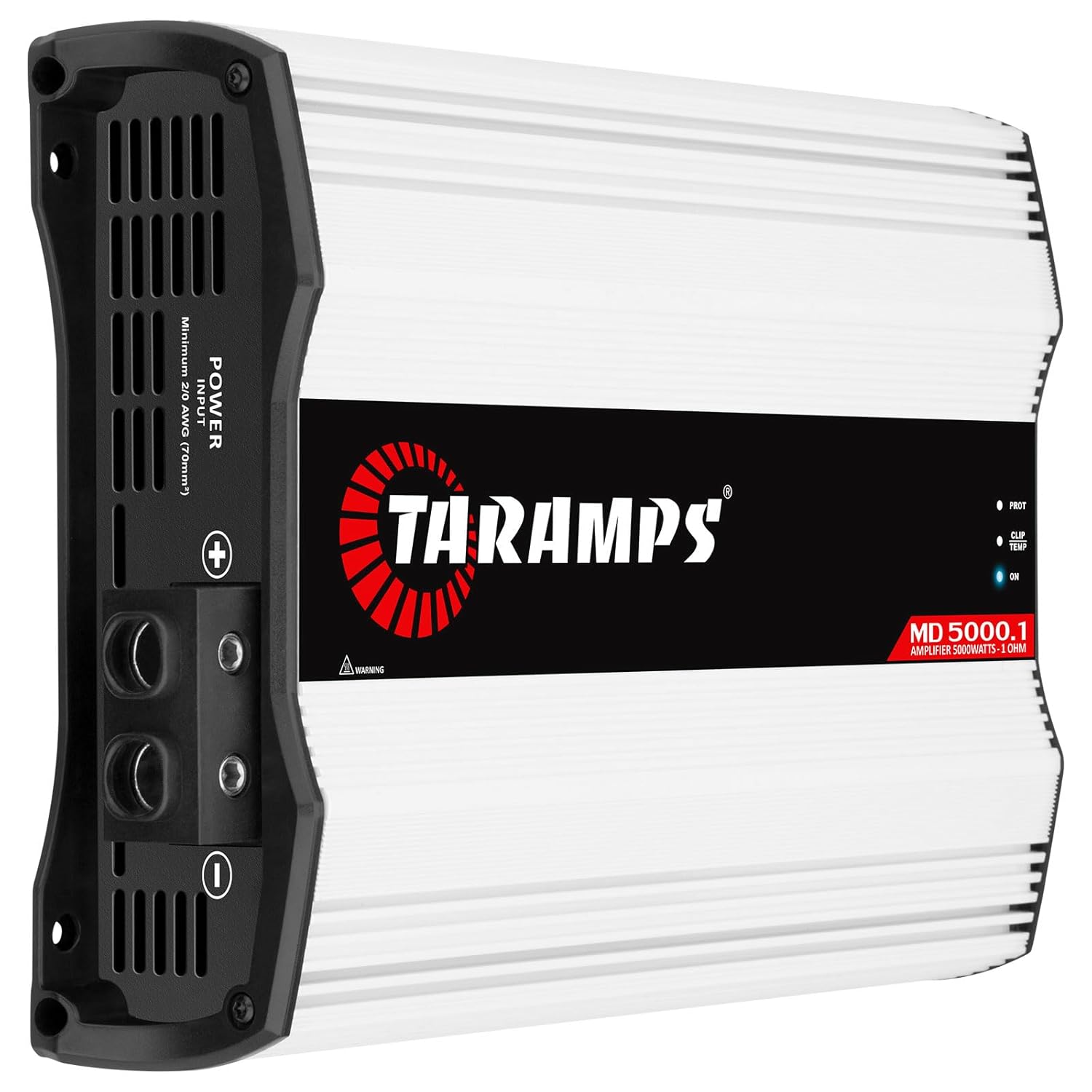

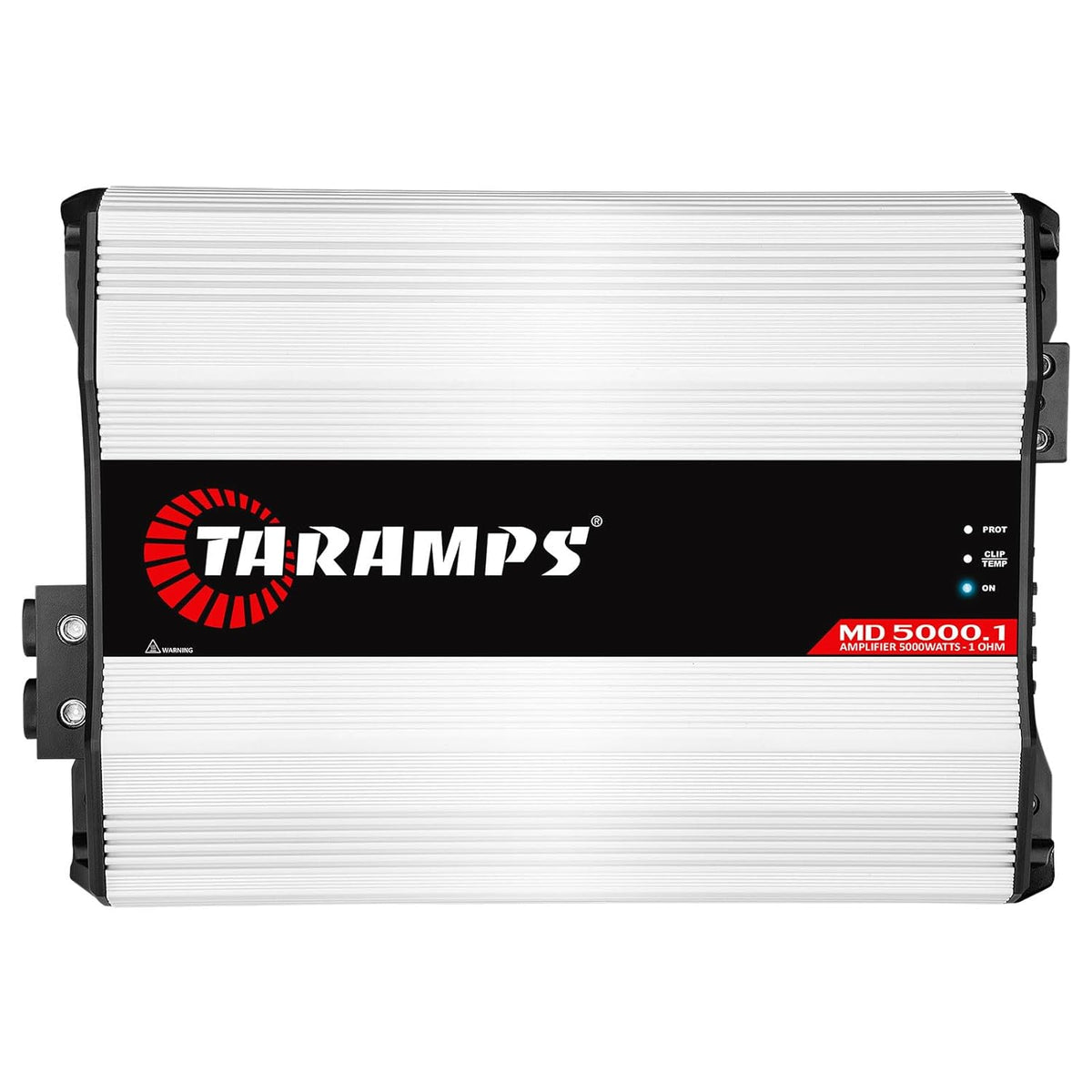

The Md 5000.1
SEE IT IN ACTION
MD 5000 1 ohm — official video
FEATURES
Superior versatility

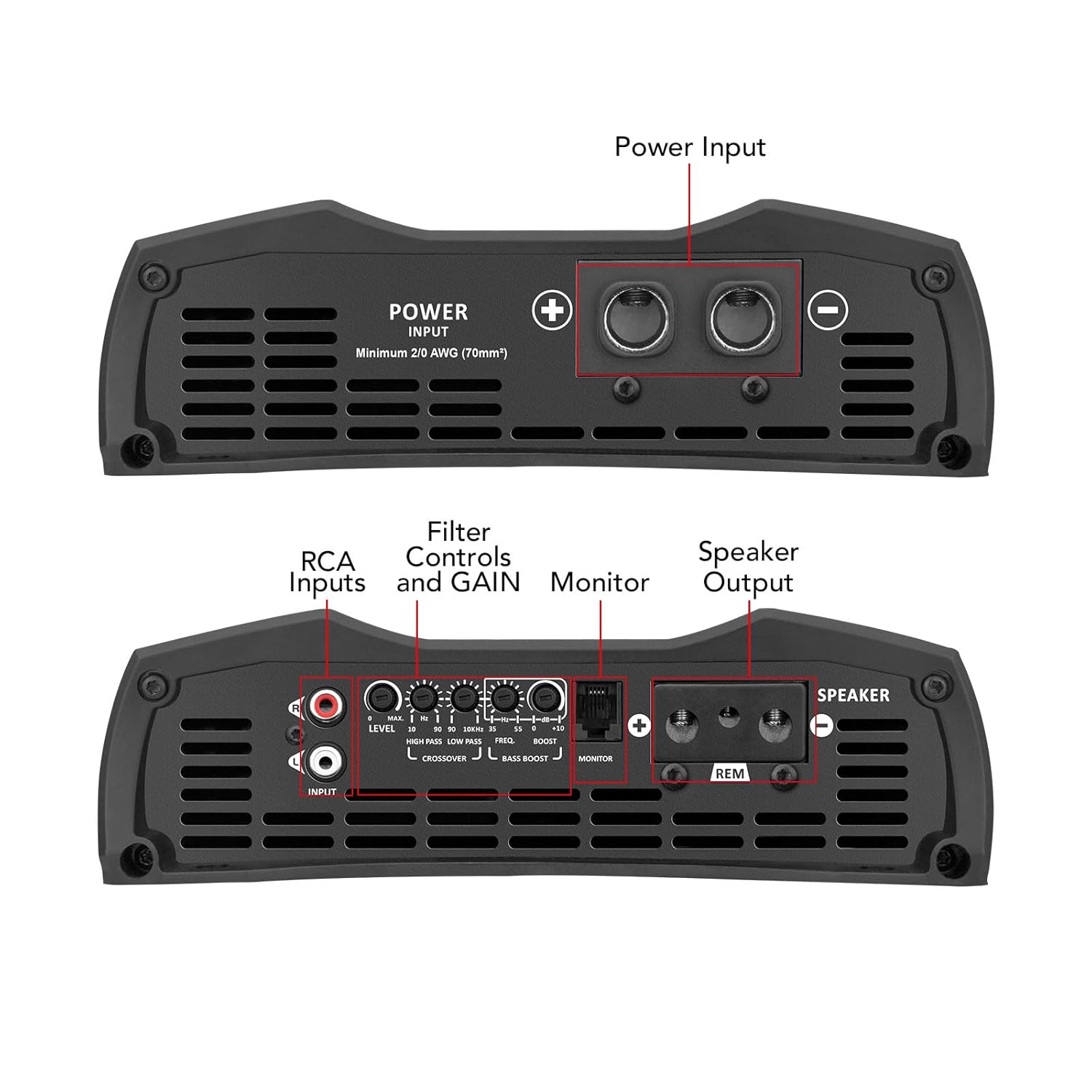

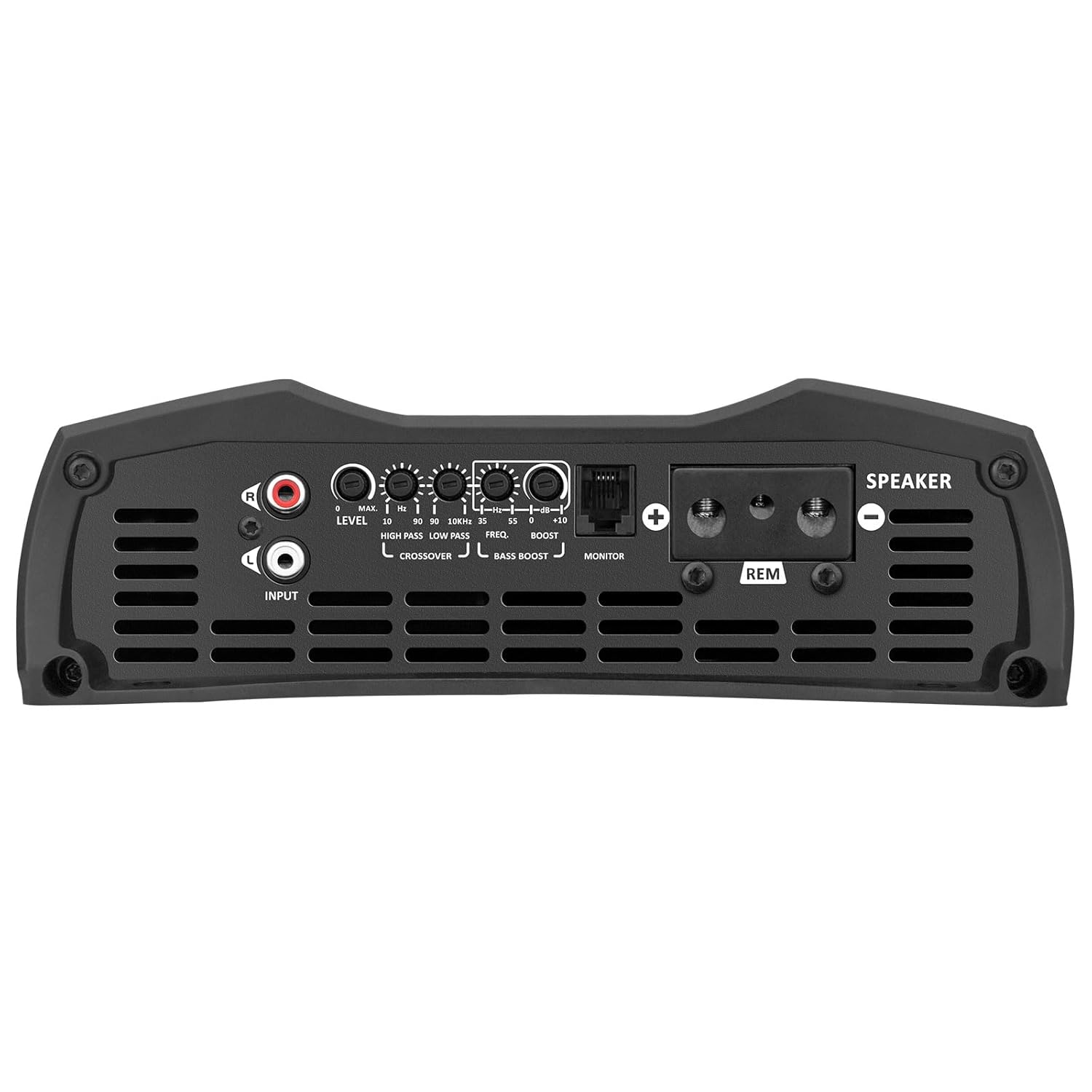

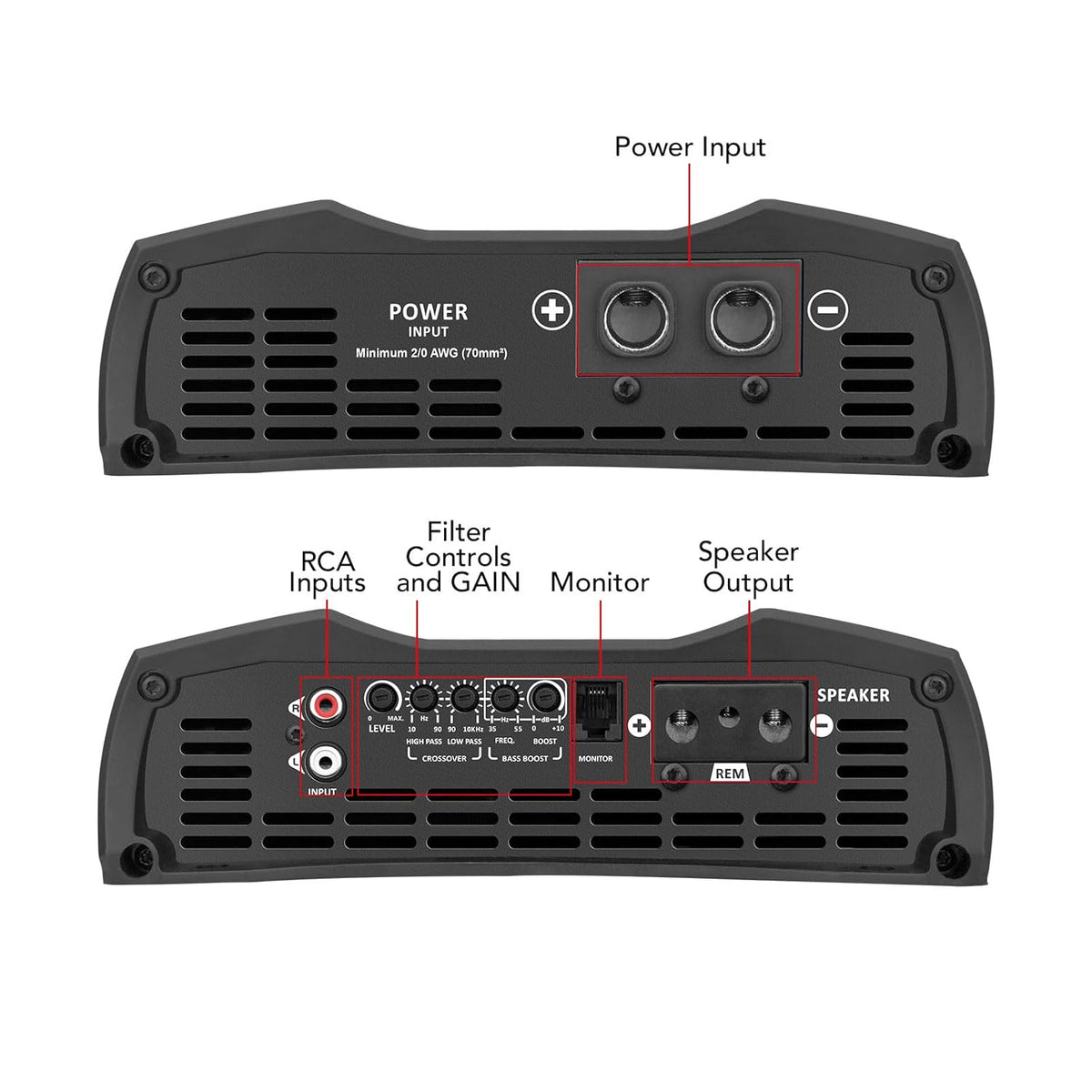

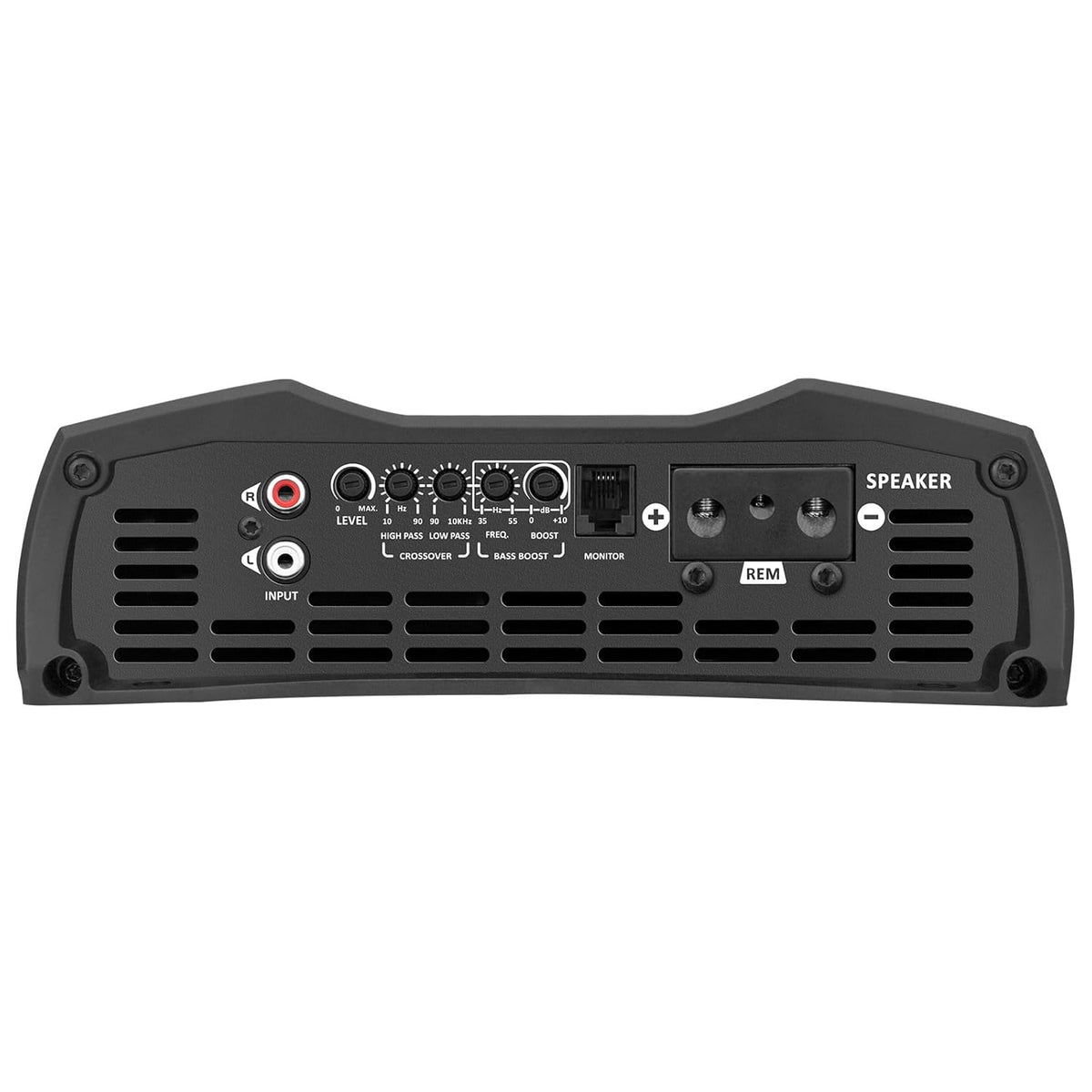

Functions and Inputs

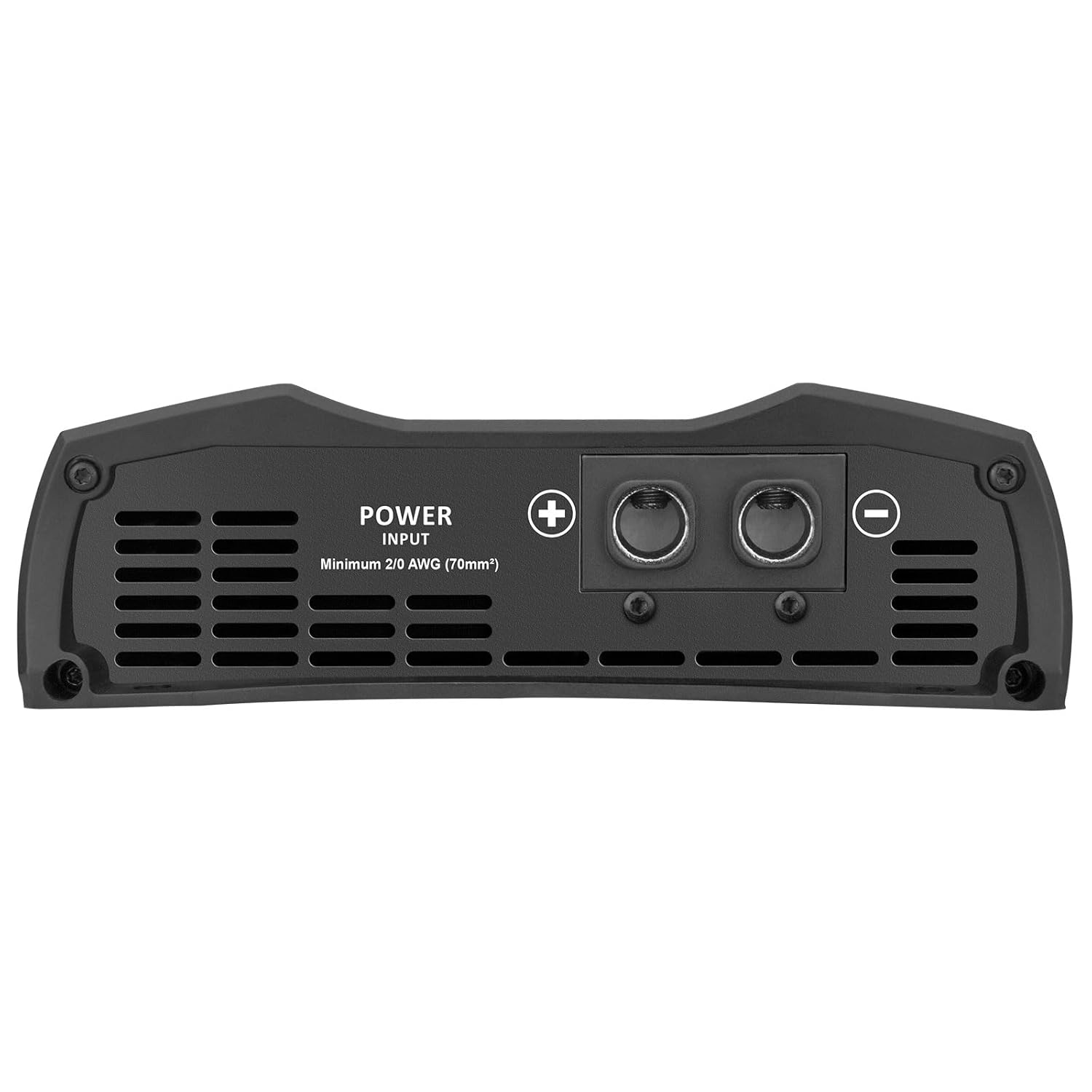

Output and Power Supply Connector
SPECS & DOWNLOADS
Technical specifications

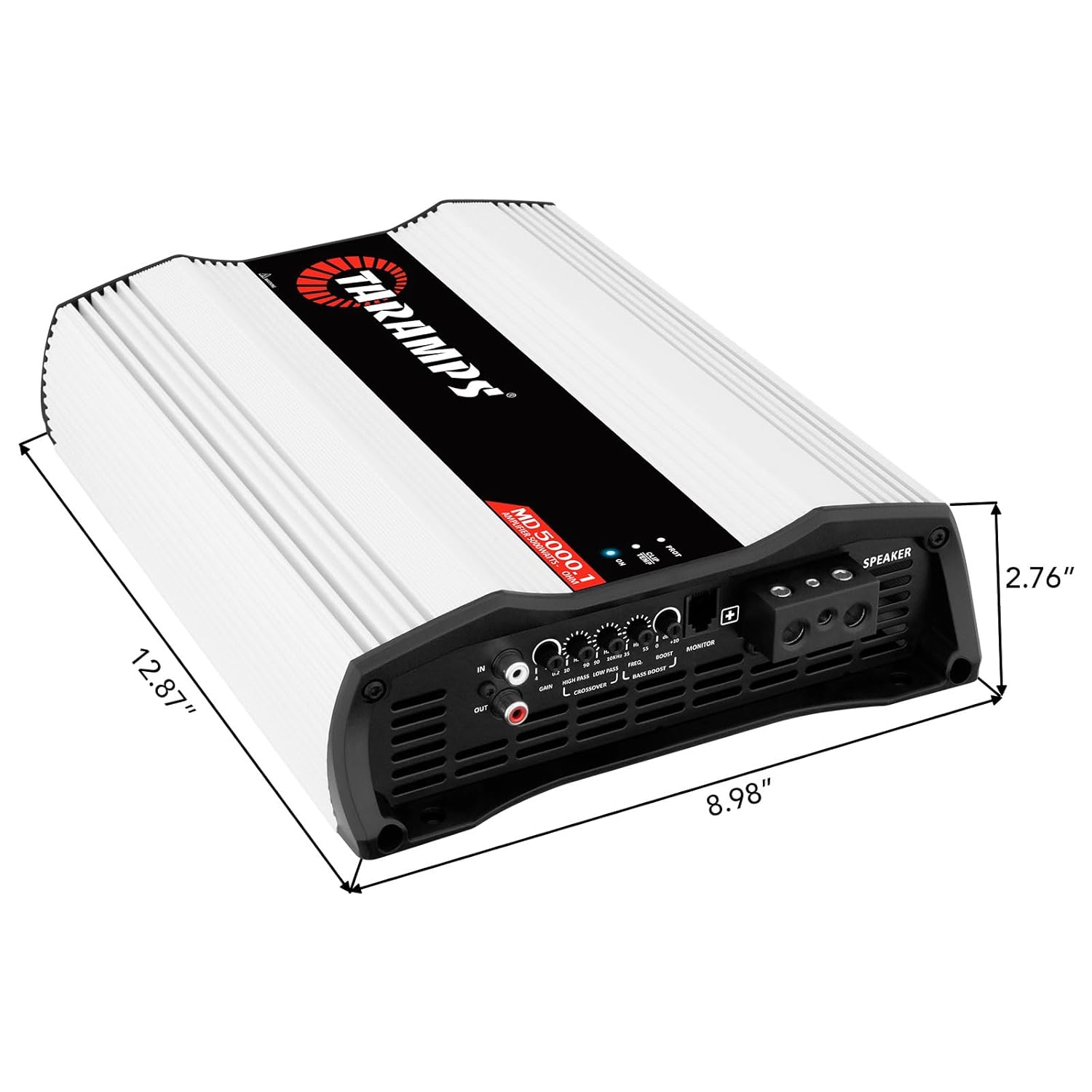

DIMENSIONS
8.98" x 2.76" x 12.87" (228 x 70 x 327mm)
POWER
5.000 Watts
CONNECTIVITY
1
OPERATION CLASS
D
NUMBER OF CHANNELS
1
INPUT SENSITIVITY
220mV
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
90Hz ~ 10KHz (-12dB/8ª) Variable
INPUT IMPEDANCE
15K Ohms
OUTPUT IMPEDANCE
1 OR 2 OHMS
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.20A
MAXIMUM MUSIC CONSUMPTION
244.50A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
489A
WEIGHT
9.28lb (4.22Kg)
EAN
7898556844697
CUSTOMER REVIEWS
11 five-star reviews from real buyers
Pulled from our Amazon storefront (Motiv Group) for this exact product. Names and dates as posted.
★★★★★
Best amplifier you could possibly buy for the money ever!!!!
purchased this amplifier about a week ago and it is amazing. And the best amp you can buy for the money. it's also very compact for being a 5k RMS. extremely powerful. And the sound quality on my music is just perfect. if you're going to power, this amplifier do not run it unless you have either in a high output alternator or a XS power battery that will support at least $3 to 5,000 Watts. otherwise the amp will go in to protect mode. + you will lose almost half of your power on stock electrical. do that and this will be the loudest best amp money can possibly buy for the wattage
★★★★★
It gets the job done
Nice powerful amp.Im running it on 2 skar evl 12.I was running them off 1800 watt kicker but the kicker would get hot and cut off in about 30 minutes on high levels but it would cut back on in 2 or 3 minutes but with this teramp amp.I haven't had that problem and i didn't upgrade my electrical system but I do have a very expensive battery under the hood.So far so good.
★★★★★
So far it’s everything we ordered
As of now we love the amp we had a little shipping issue contacted Amazon and they had a replacement sent to my house the next day! My husband was ecstatic to finally have his amp! He’s hooking it up as we speak so far so good!
★★★★★
Badass amp
Great amp works way better than most would believe, taramps have tremendous power if you have the electrical to back it up
★★★★★
I have 4 kicker comps and I blew 1
Great buy this mfer will require extra power to push and good speaker
★★★★★
Excellent
Love this amplifier just have to do a lil more adjusting
