OVERVIEW

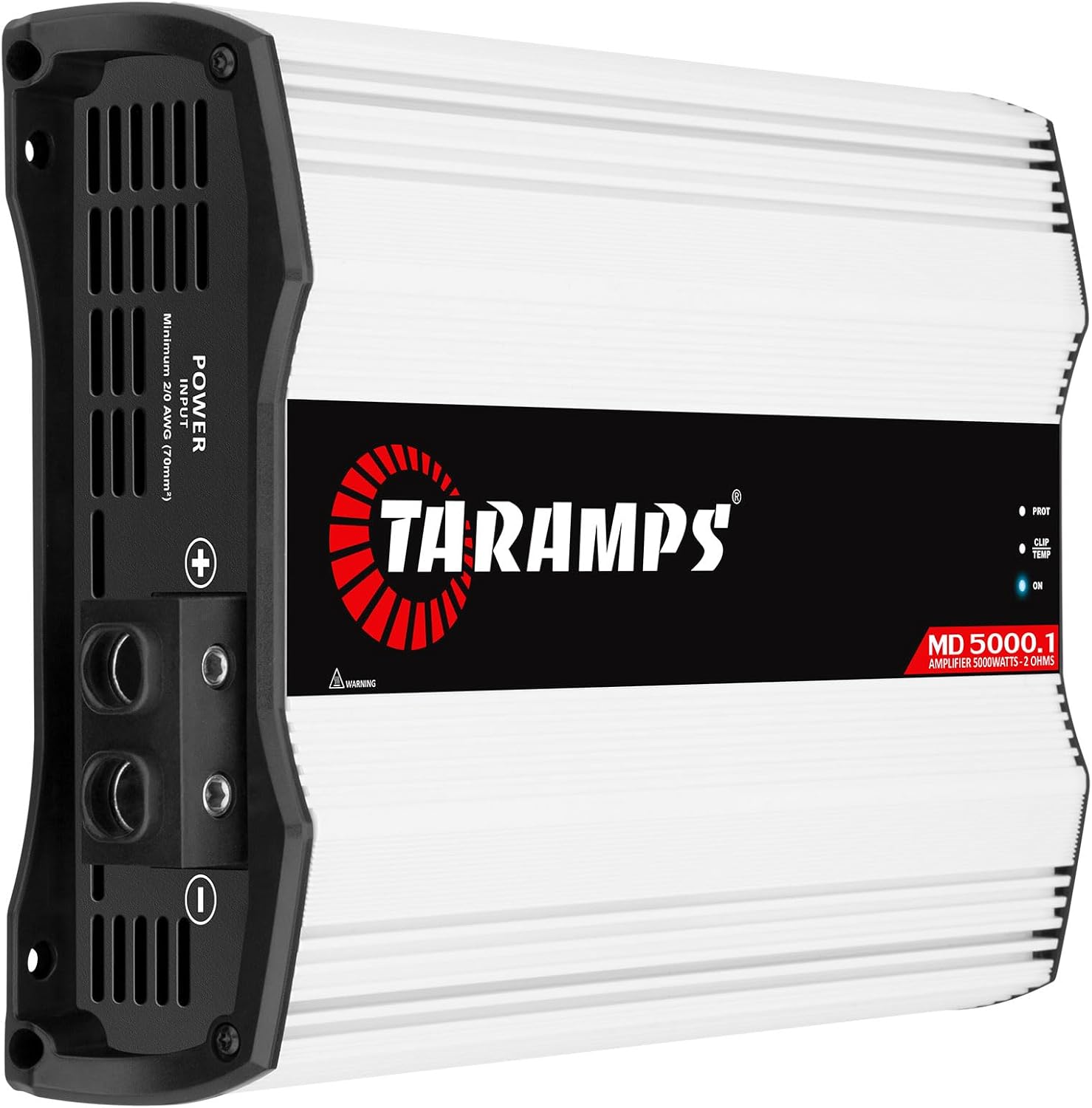

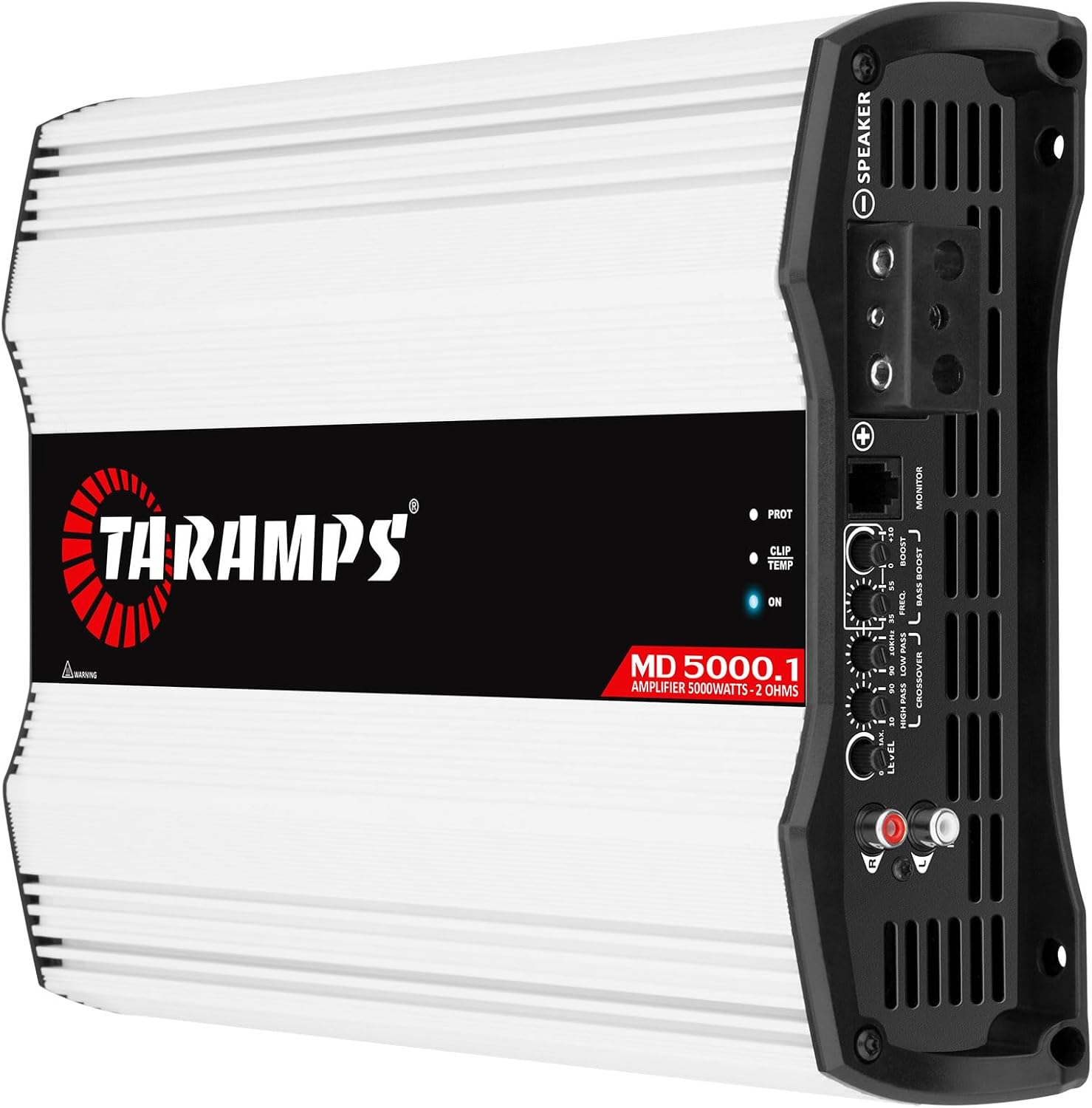

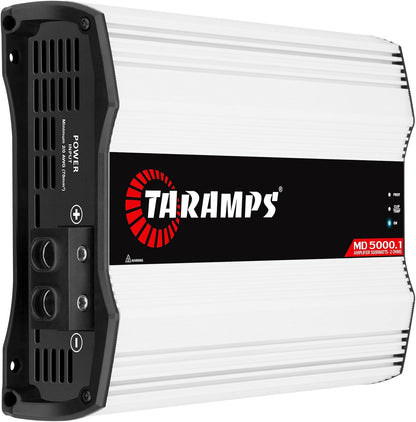

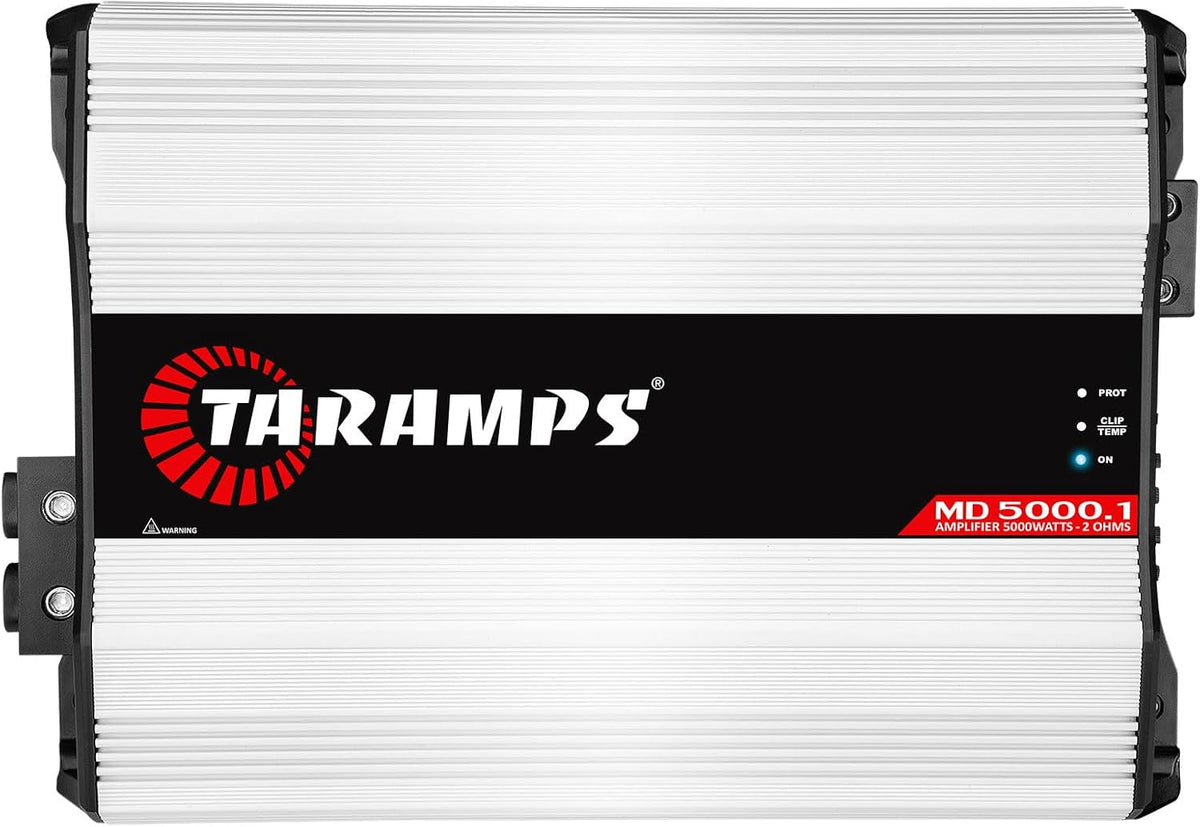

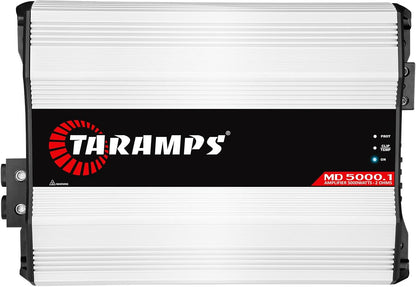

The Md 5000.1
SEE IT IN ACTION
MD 5000 2 ohm — official video
FEATURES

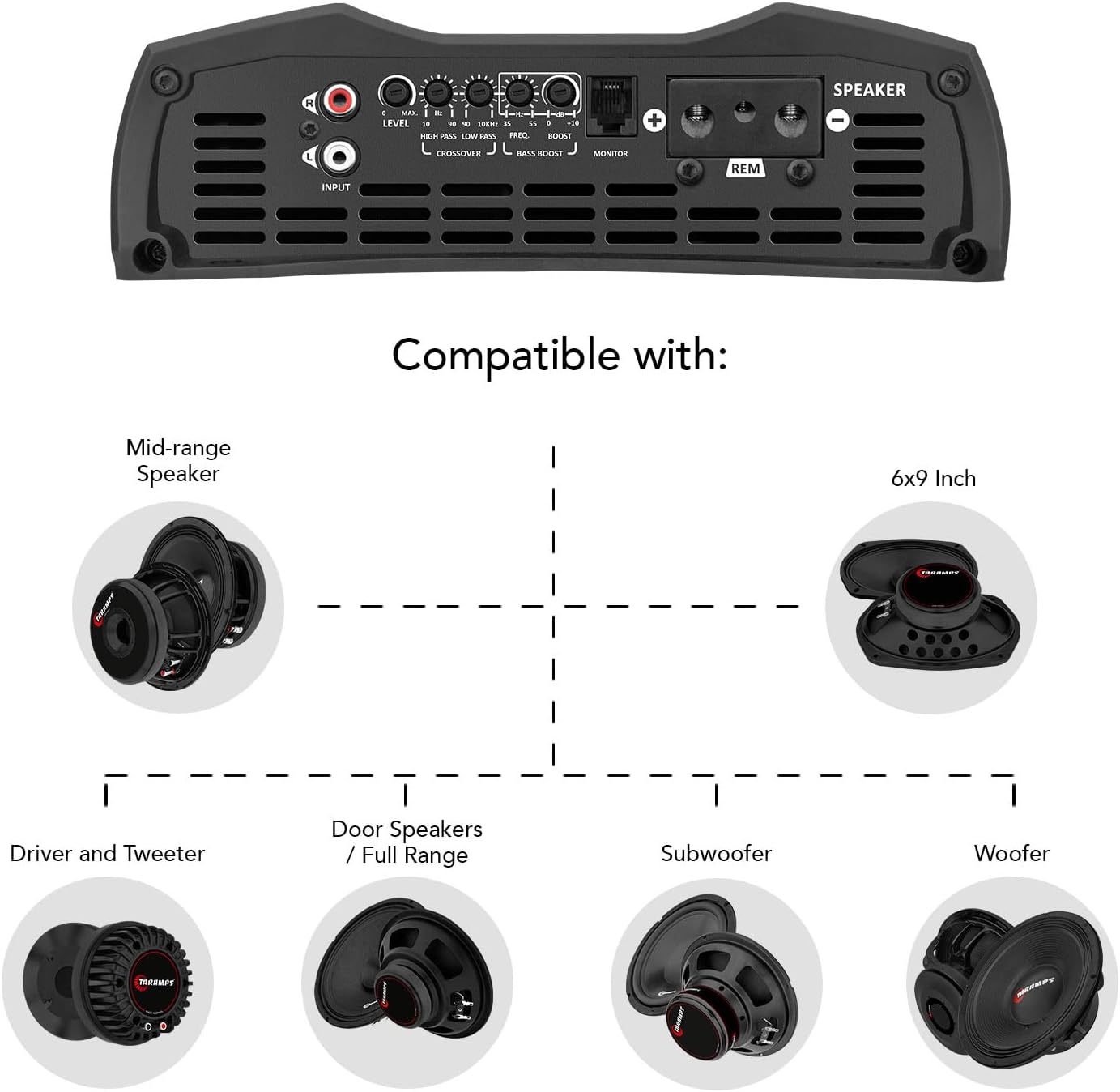

Superior versatility

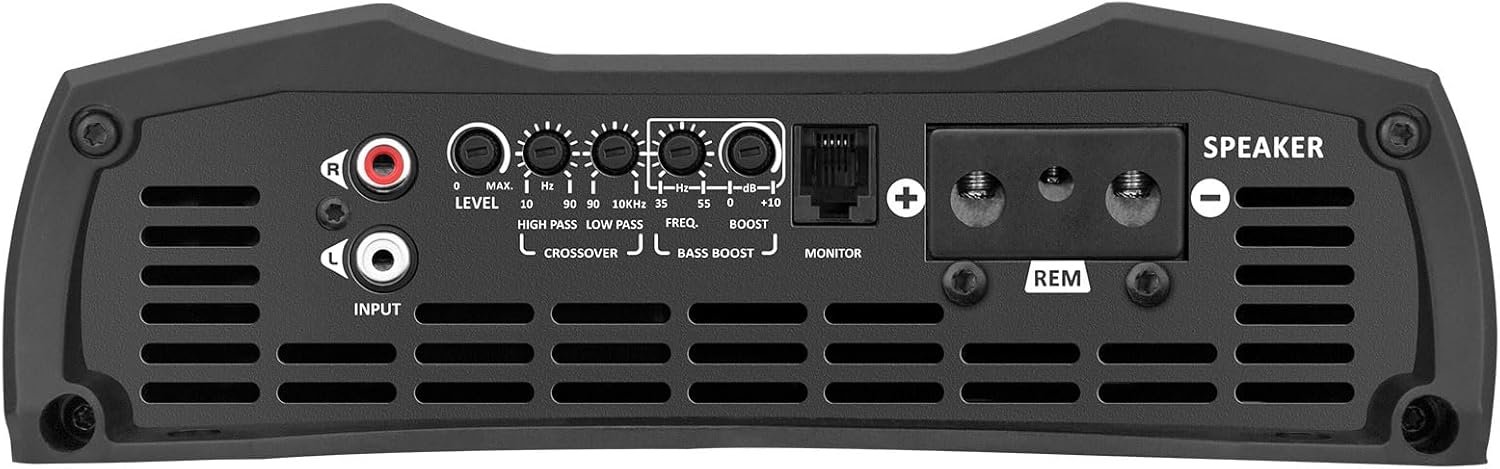

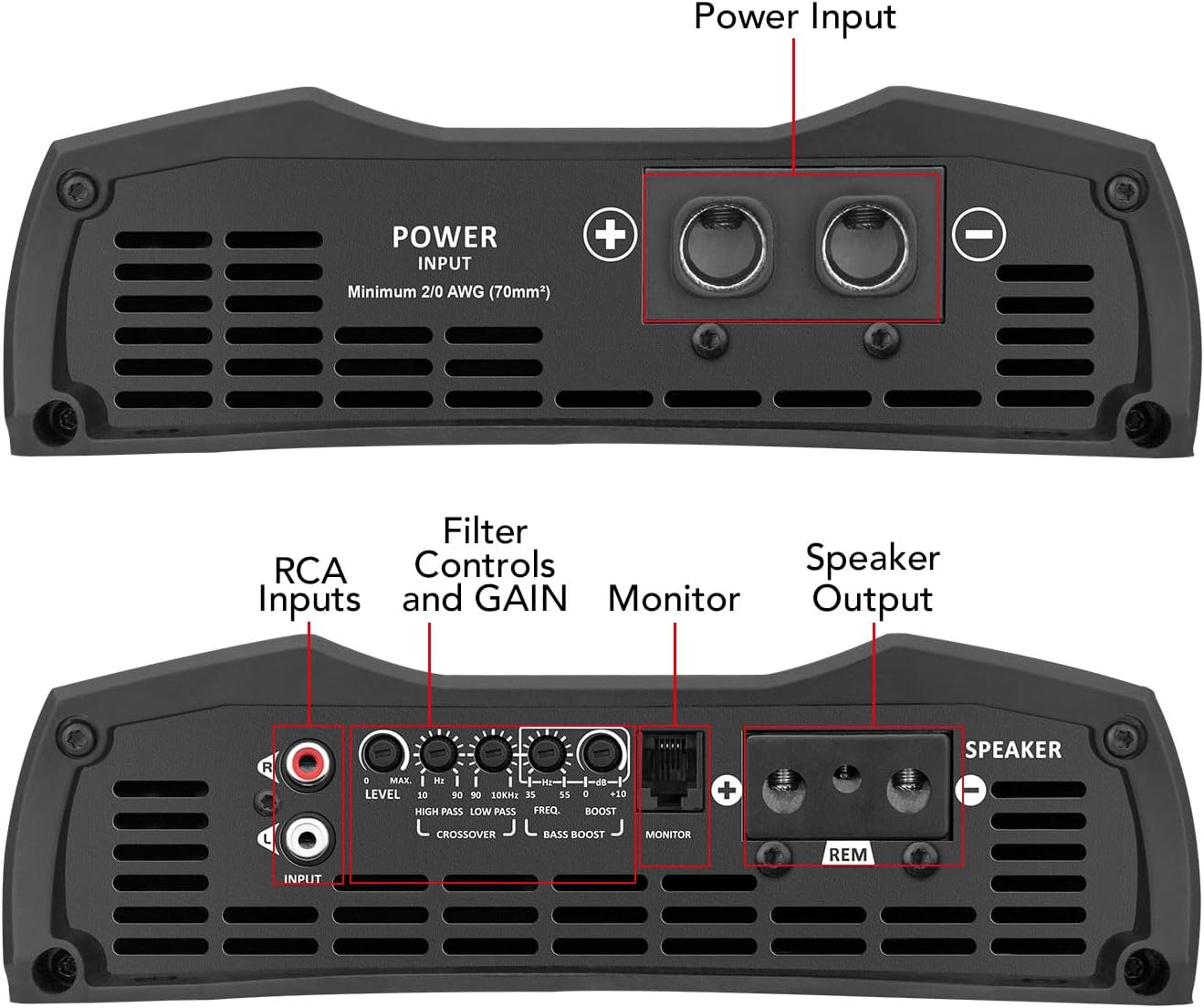

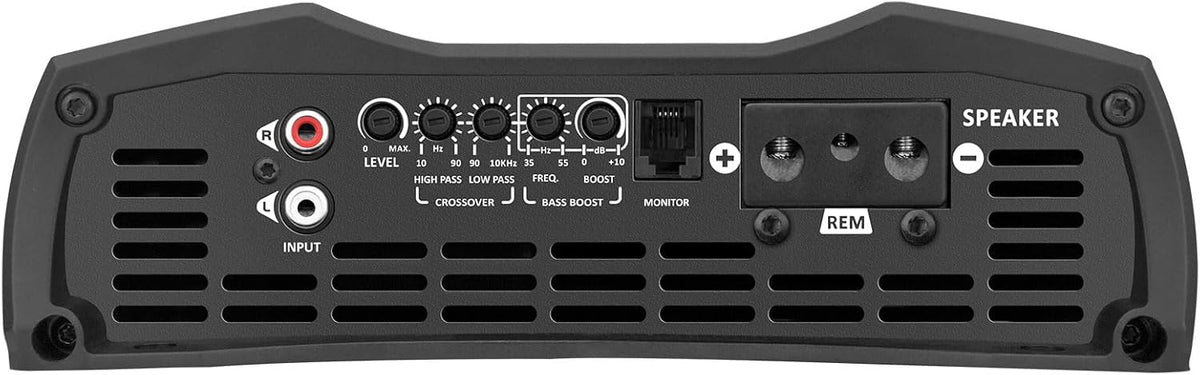

Functions and Inputs

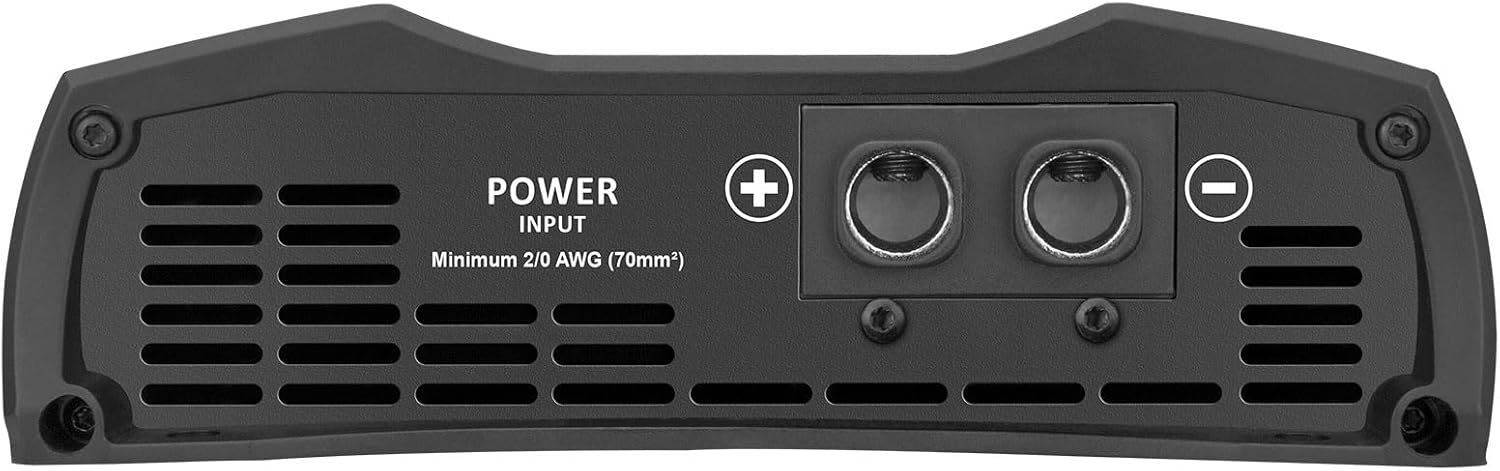

Output and Power Supply Connector
SPECS & DOWNLOADS
Technical specifications

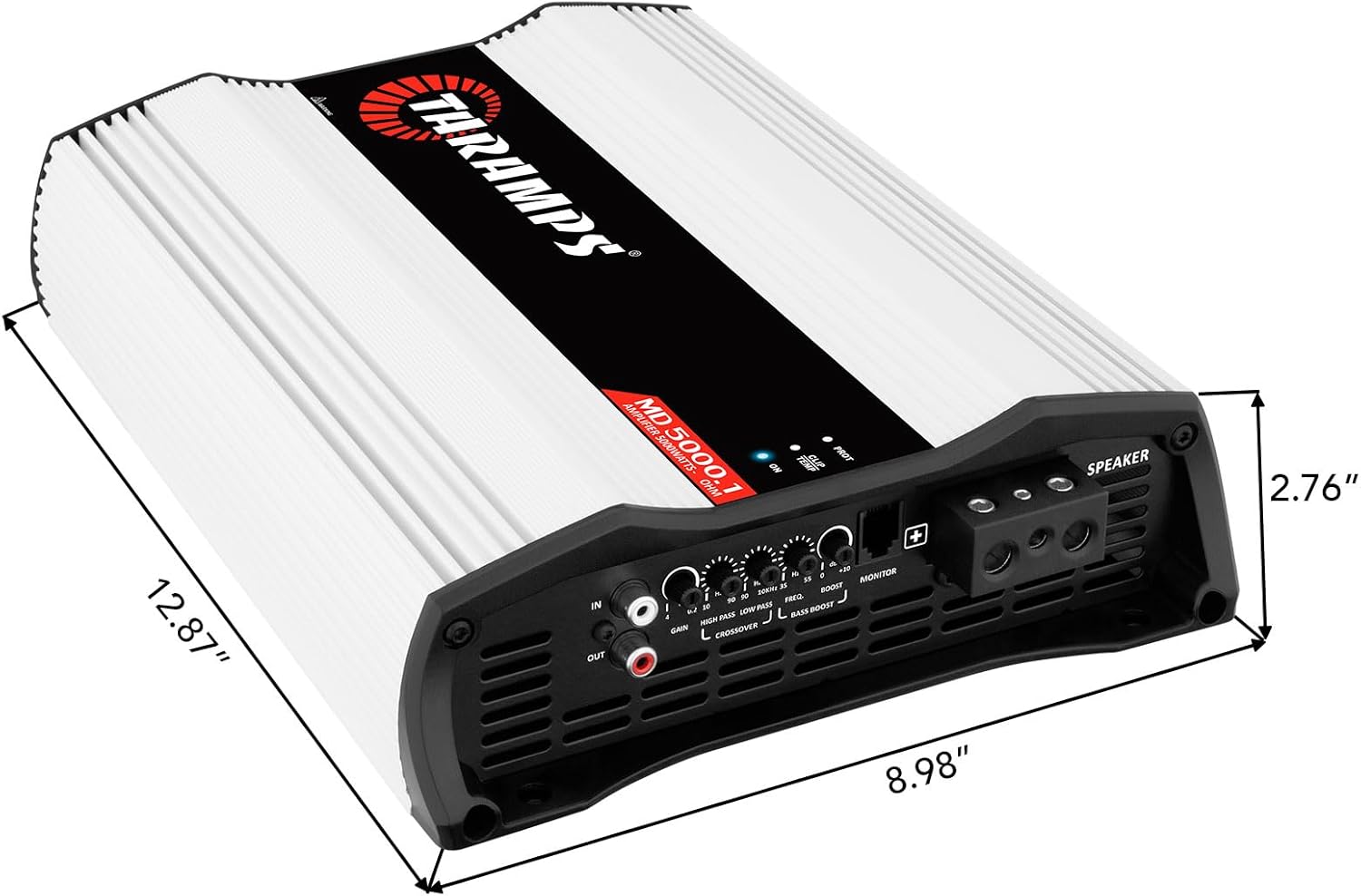

DIMENSIONS
8.98" x 2.76" x 12.87" (228 x 70 x 327mm)
POWER
5.000 Watts
CONNECTIVITY
1
OPERATION CLASS
D
NUMBER OF CHANNELS
1
INPUT SENSITIVITY
220mV
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
90Hz ~ 10KHz (-12dB/8ª) Variable
INPUT IMPEDANCE
15K Ohms
OUTPUT IMPEDANCE
1 OR 2 OHMS
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.20A
MAXIMUM MUSIC CONSUMPTION
244.50A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
489A
WEIGHT
9.28lb (4.22Kg)
EAN
7898556844697
CUSTOMER REVIEWS
15 five-star reviews from real buyers
Pulled from our Amazon storefront (Motiv Group) for this exact product. Names and dates as posted.
★★★★★
Great amp
Using this to power 2 15" Skar VXF subs and it is perfect for them. Plenty of reserve power. Great sound. Stoopid loud! Played at full tilt for 2 hours of demos and it never even got warm. Stayed around 78 degrees F and outside temp was around 55. I do have external fans connected to a thermostat to turn on at 100 degrees but they never even turned on once. Always heard these had problems with overheating but if you put the right power to it from the alternator(s) and have the right size cables then shouldn't have an issue. Definitely happy with my purchase!
★★★★★
Talk about bang for the buck !!!!
Buying this on amazon is the best way to go. I purchased this and on day 2 the amp board went out. Reported the item defective and amazon sent me a new one that week . All I had to do was send the old one back in 30 days. After getting the new one and setting it up. Cross overs on the amp are a little confusing to set because it is a full range amp. My gain is on the lowest setting and it's insane !! I'm powering 2 Sound Stream Tarantula T5's 12". I highly recommend upgrading you battery or adding a 2nd one. It's a hungry beast.
★★★★★
Amazing power
I must say this is my second taramps amp jumping from the smart 3k to this beast 5k. I have it powering 3 dual 4 ohm American bass xfl 12s and just wow!!! I have my buddy going from just holding their ears to jumping out of the car from so much pressure lol. Would definitely recommend this amp and brand to anybody looking for some big power.
★★★★★
Tudo ok
Gente,meu irmão teve dificuldade d3 instalar ela,pensei até que tinha vindo com defeito,mas não veio,vendedor está de parabéns veio bem embalado e chegou direitinho.Ja faz uma dois meses que eu comprei e tá tudo certo
★★★★★
到着予定通り
ãã£ããã¨æ£è¦åãå±ããå°çäºå®éãã§ãã å°ã
å¤æ®µããã¦ãå±ããä¸å®ã§ãããã¡ãã»ã¼ã¸ããä¸å¯§ã«è¿ãã¦ããã ããããã¨ããããã¾ããï¼ï¼
★★★★★
Great amp
This amp has me beating down the block Got it on 2 12 in orion hcca and pushing them like a boss
Taramps MD 5000 2 ohm
$339.99
