OVERVIEW

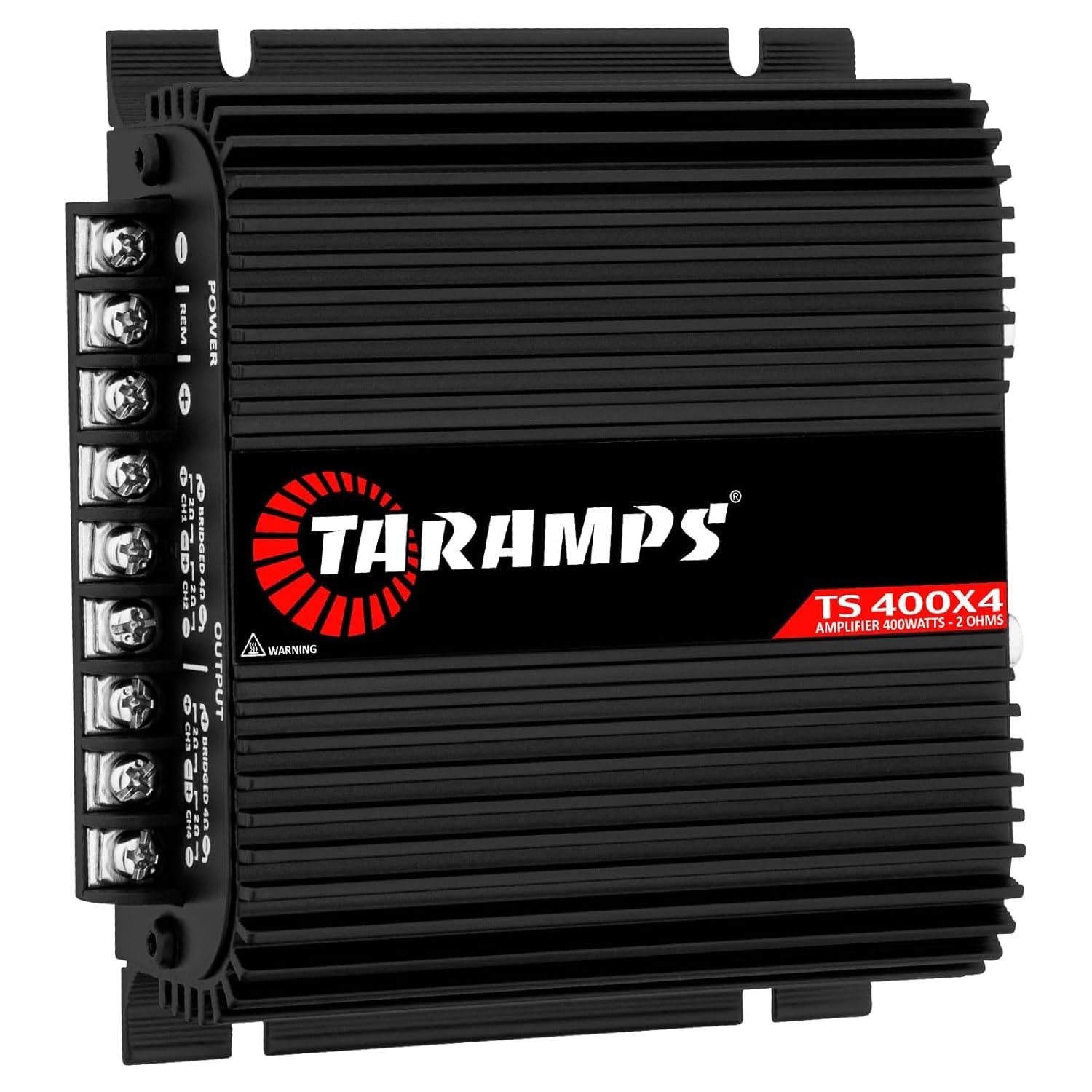

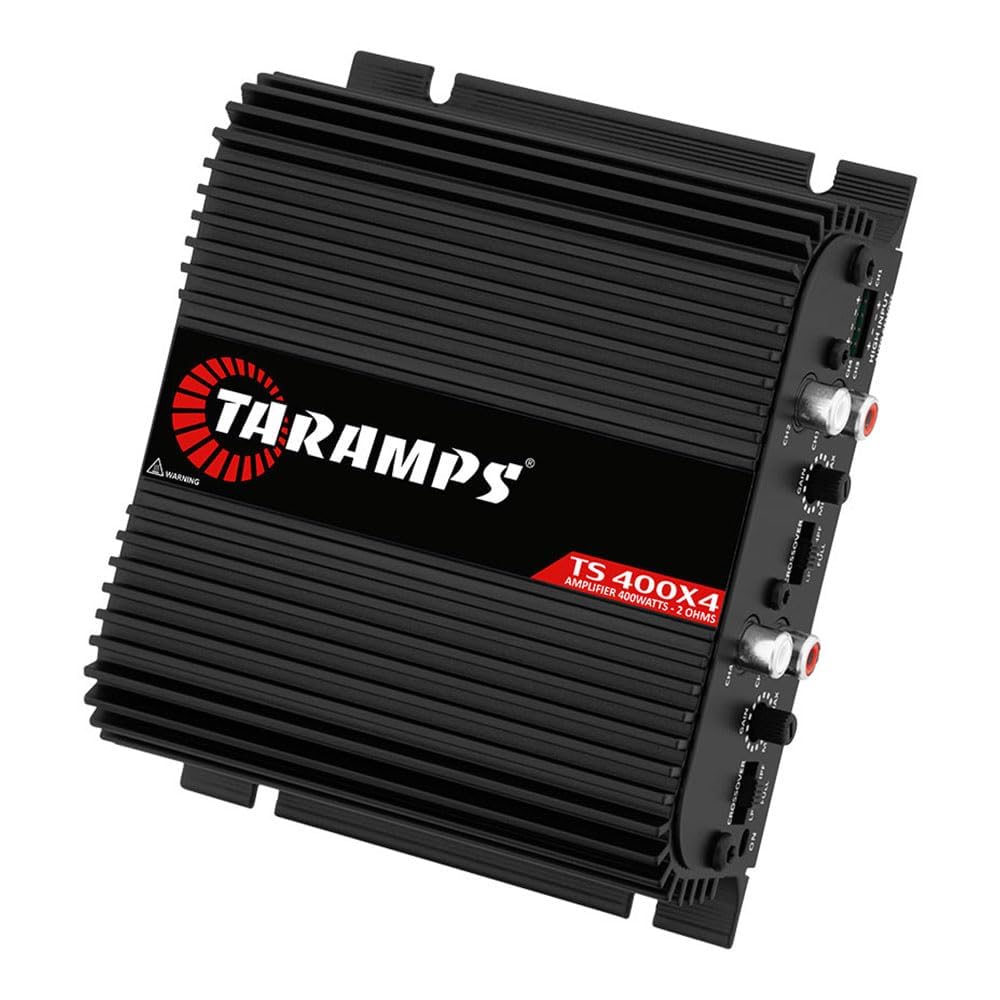

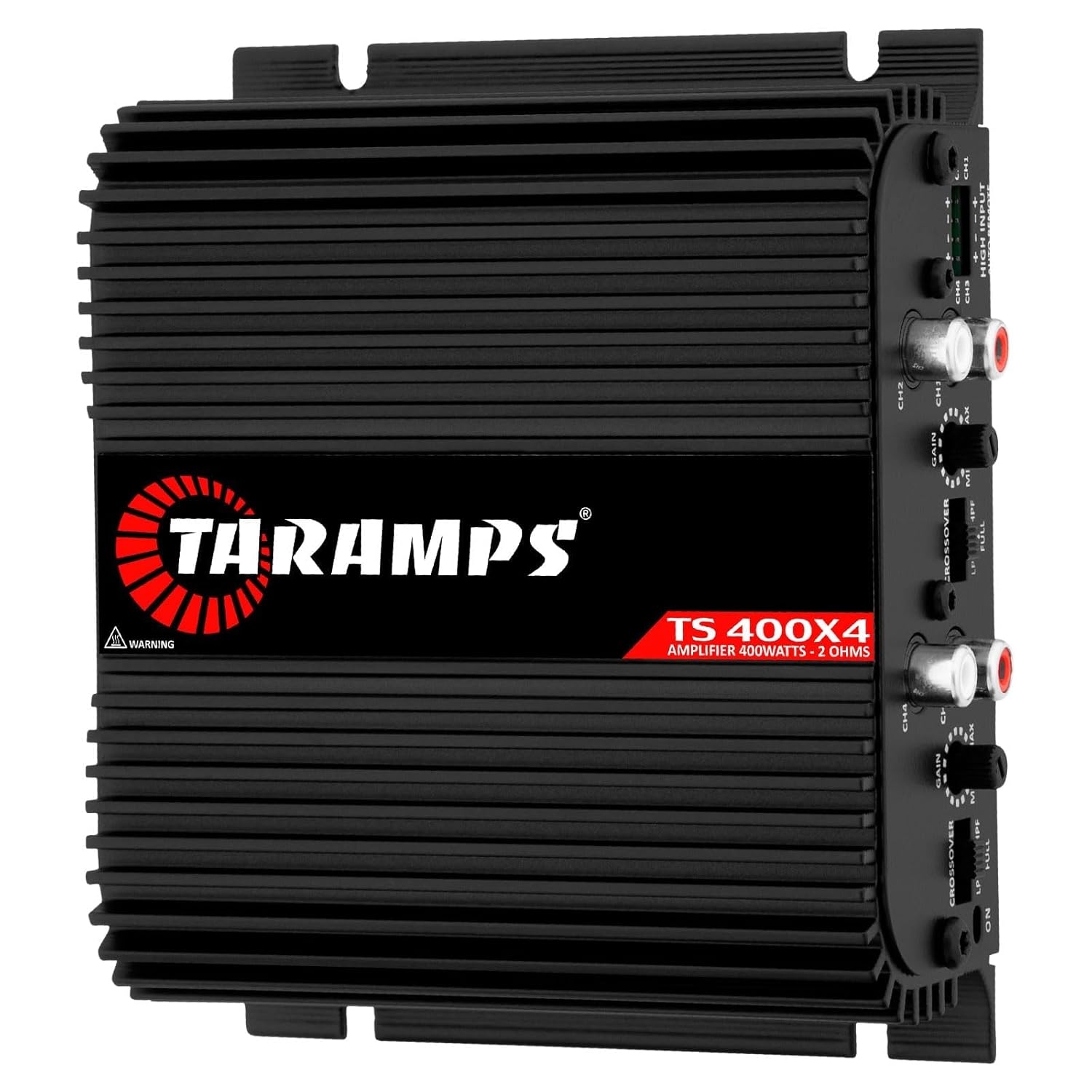

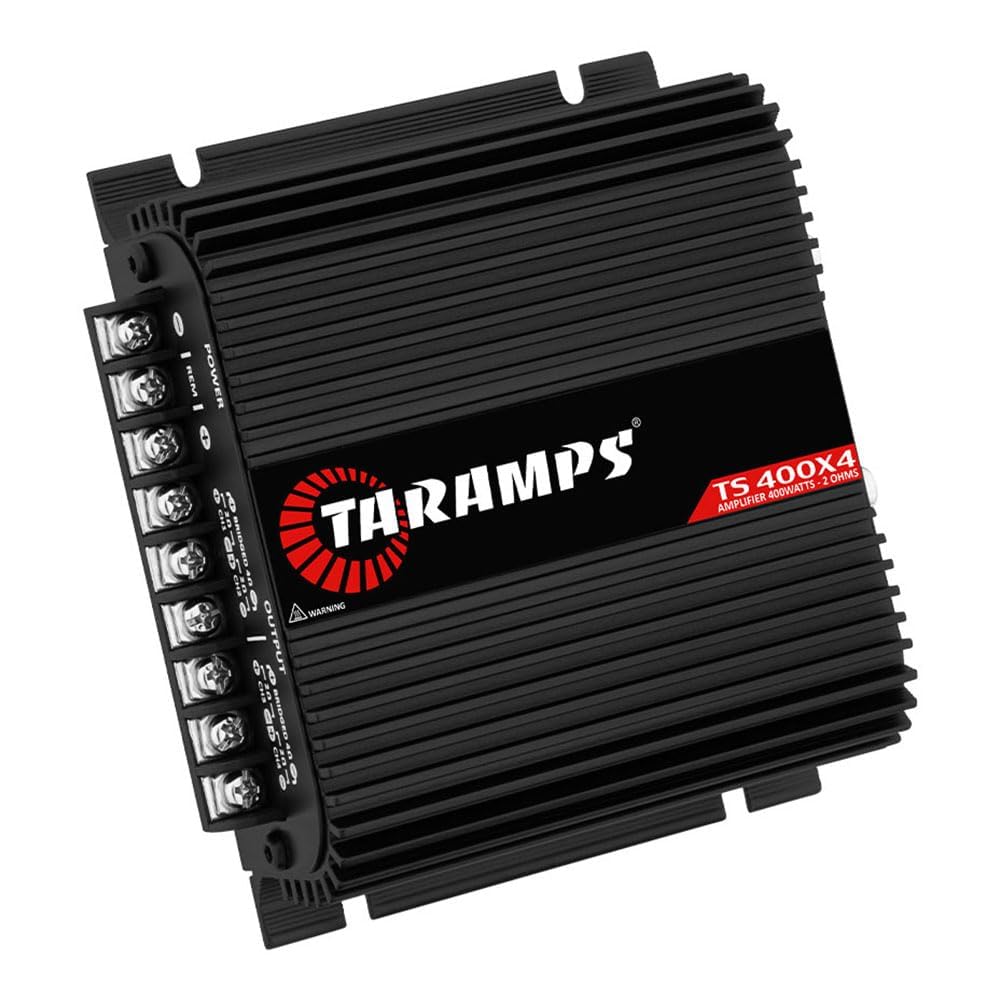

The Ts 400X4
SEE IT IN ACTION
TS 400x4 — official video
FEATURES
Superior versatility

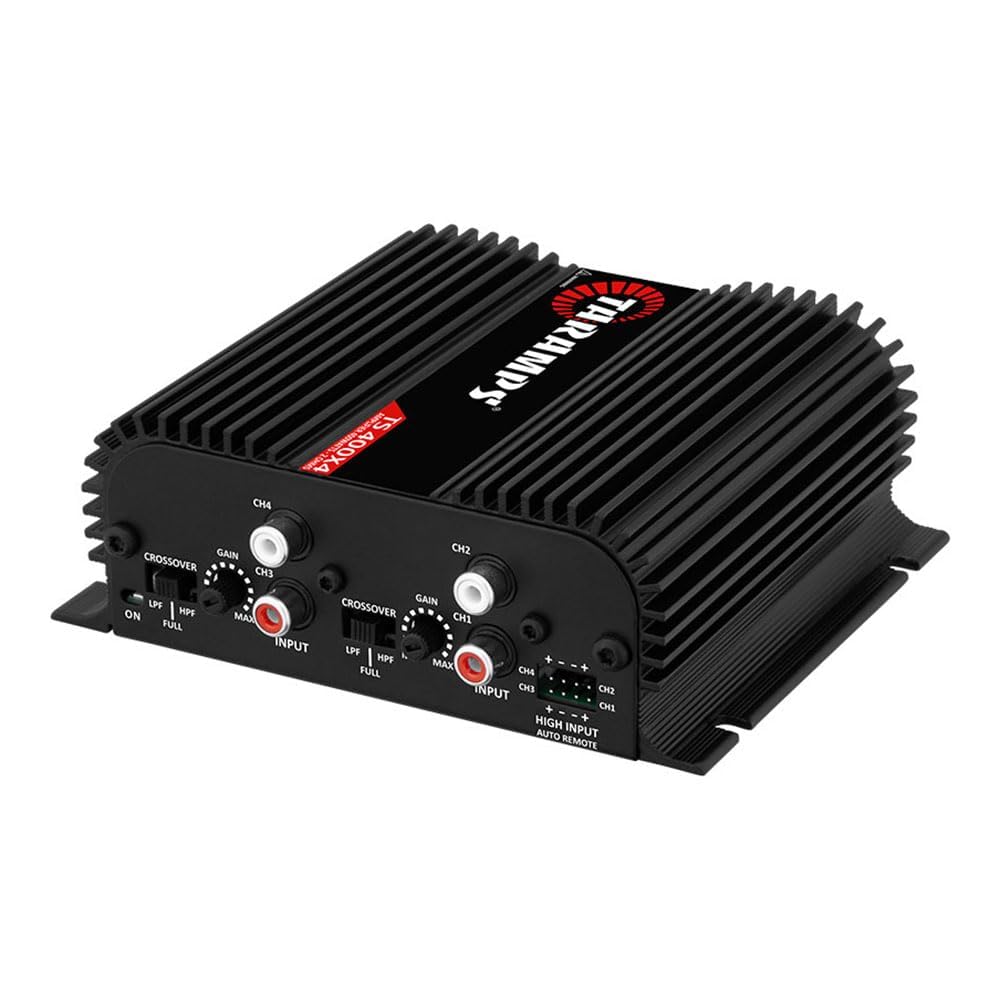

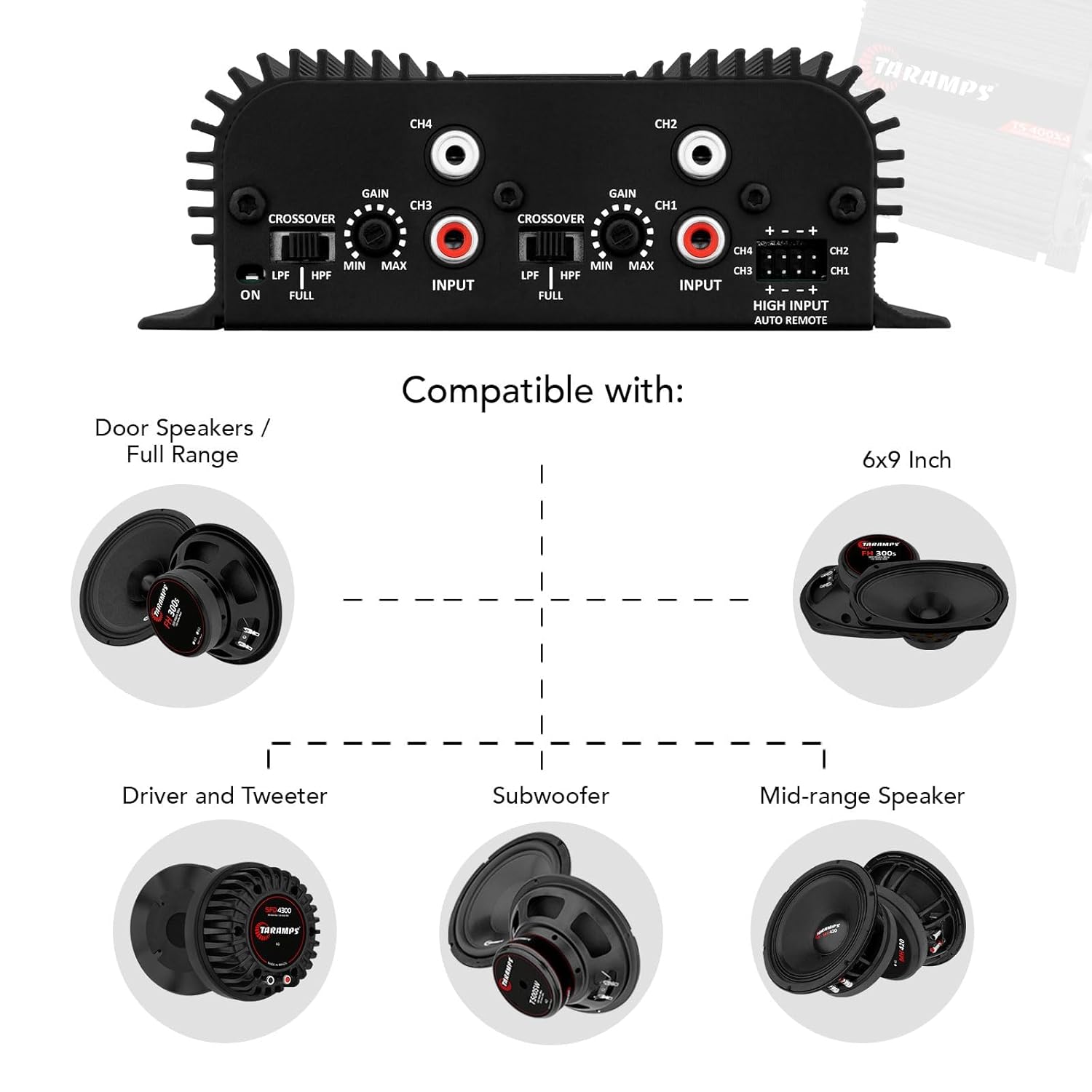

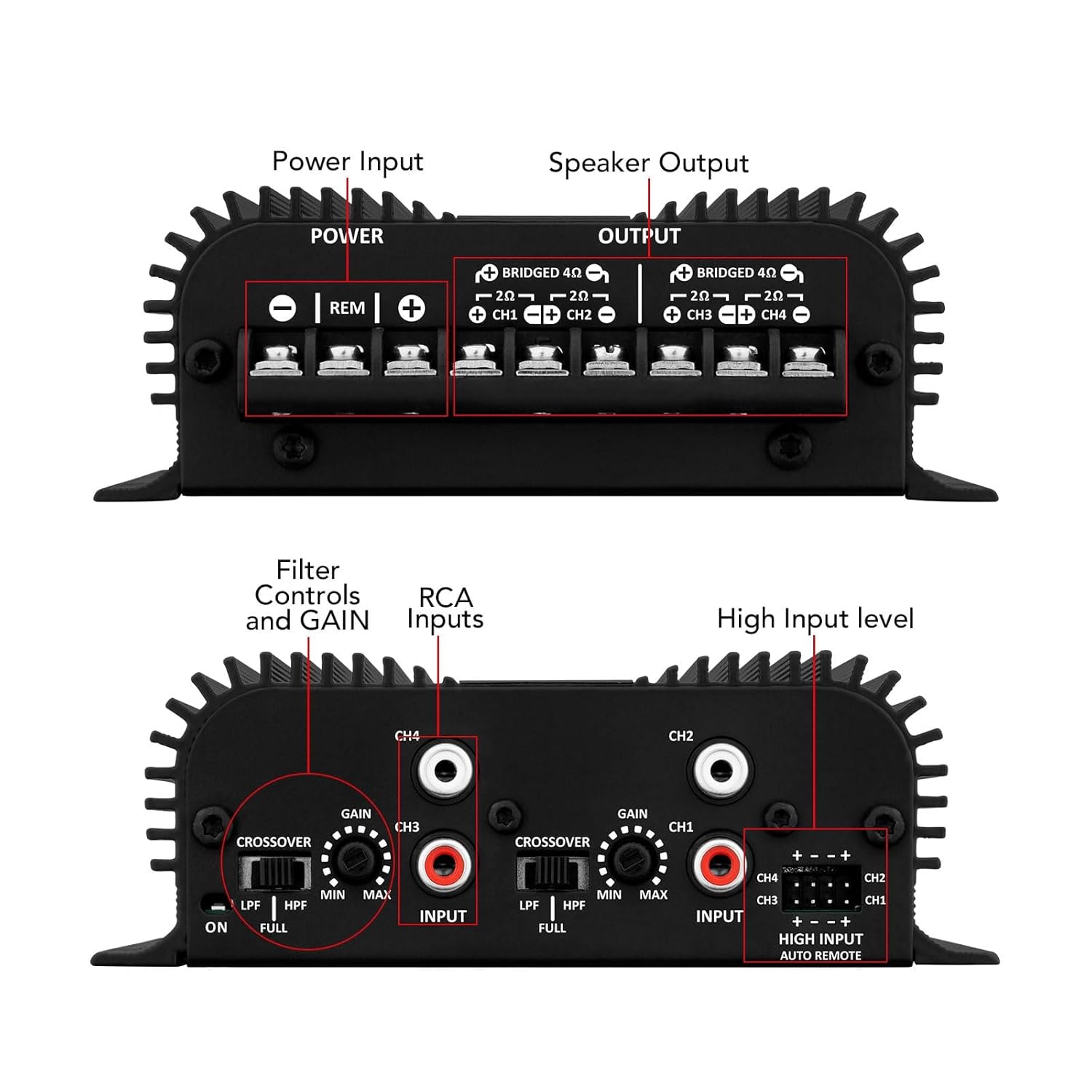

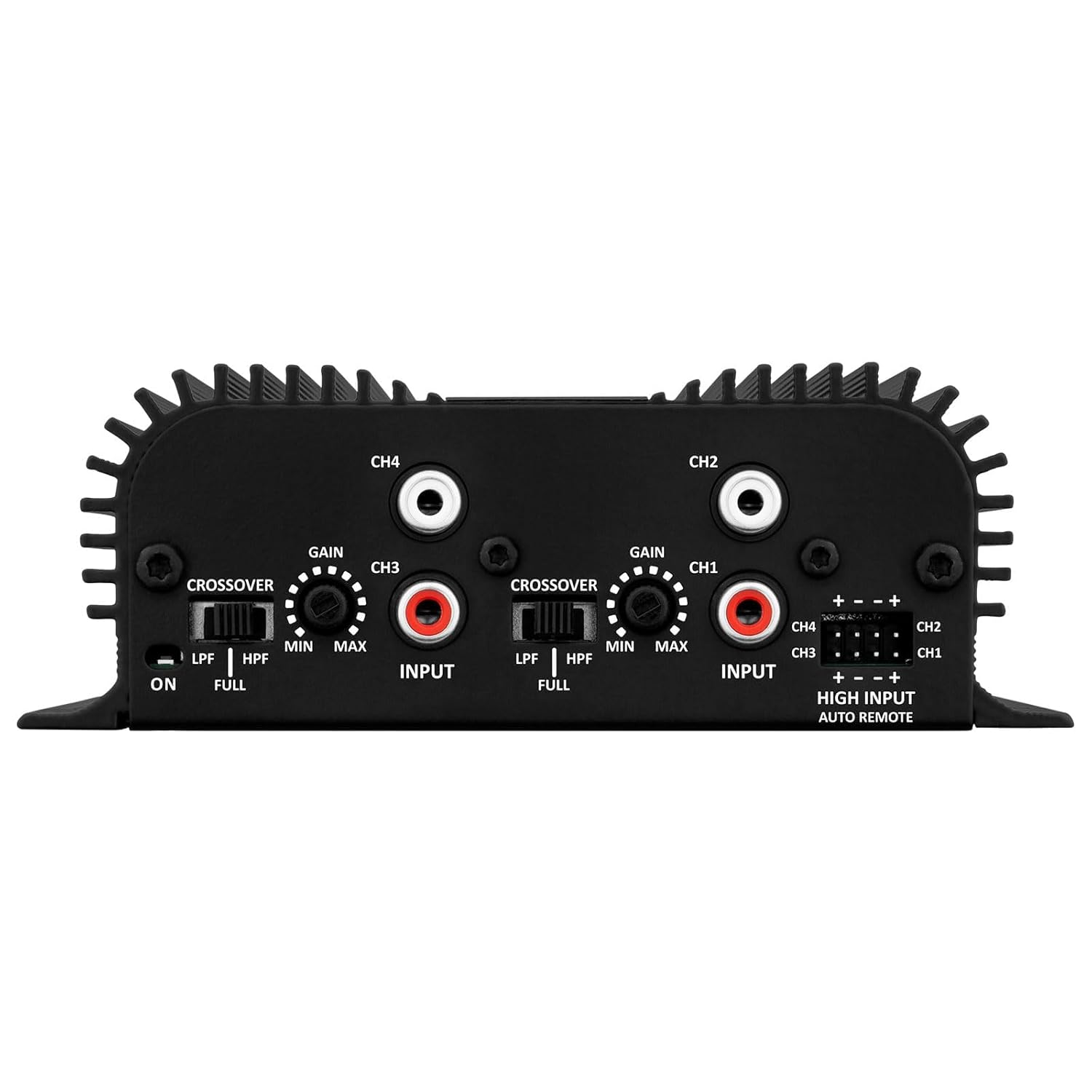

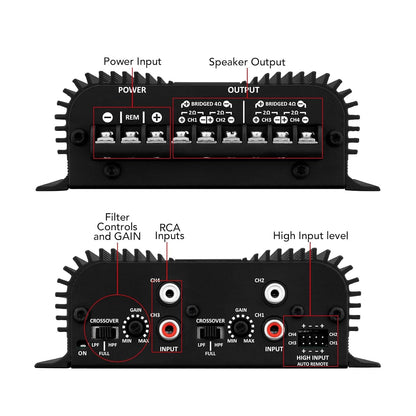

Functions and Inputs

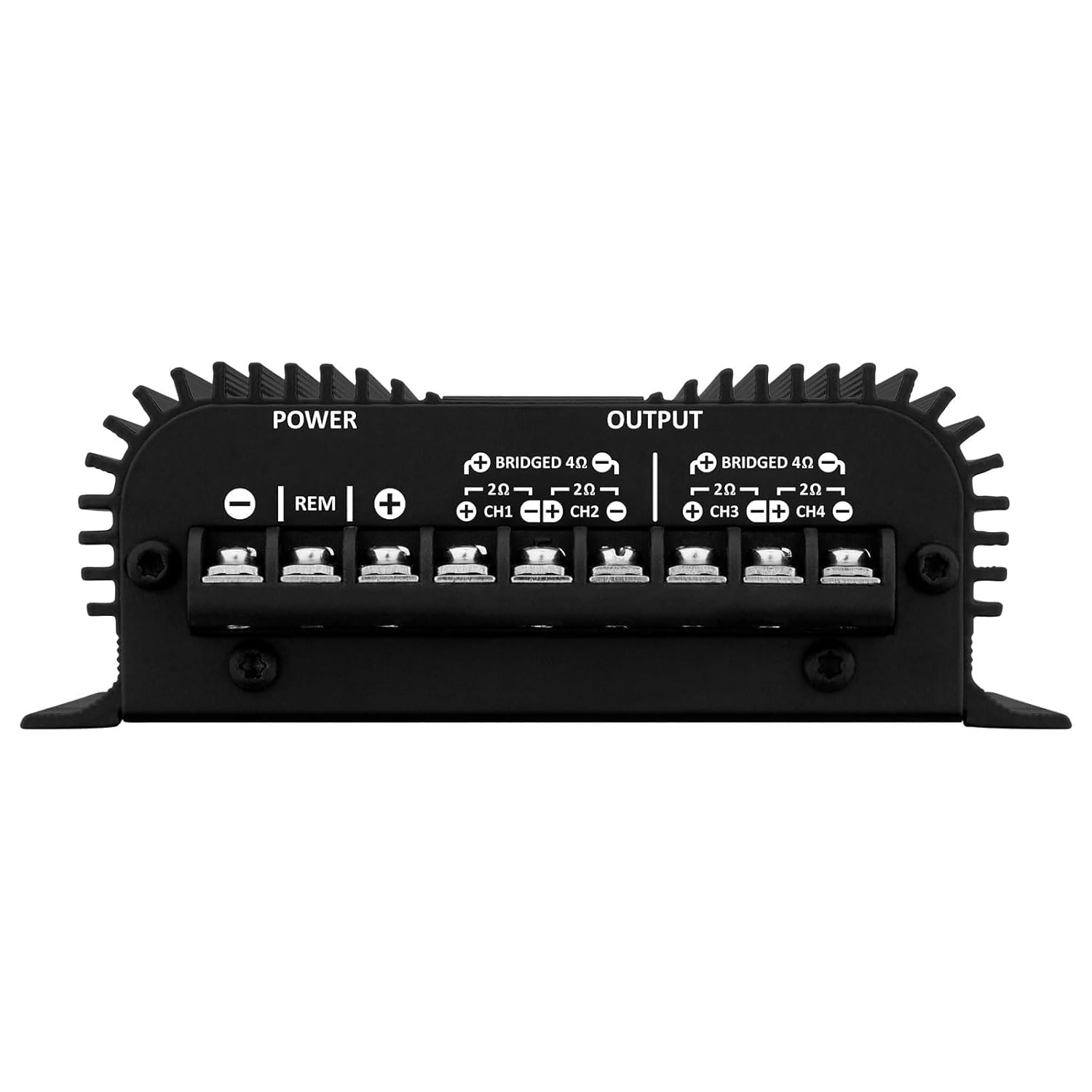

Output and Power Supply Connector
SPECS & DOWNLOADS
Technical specifications

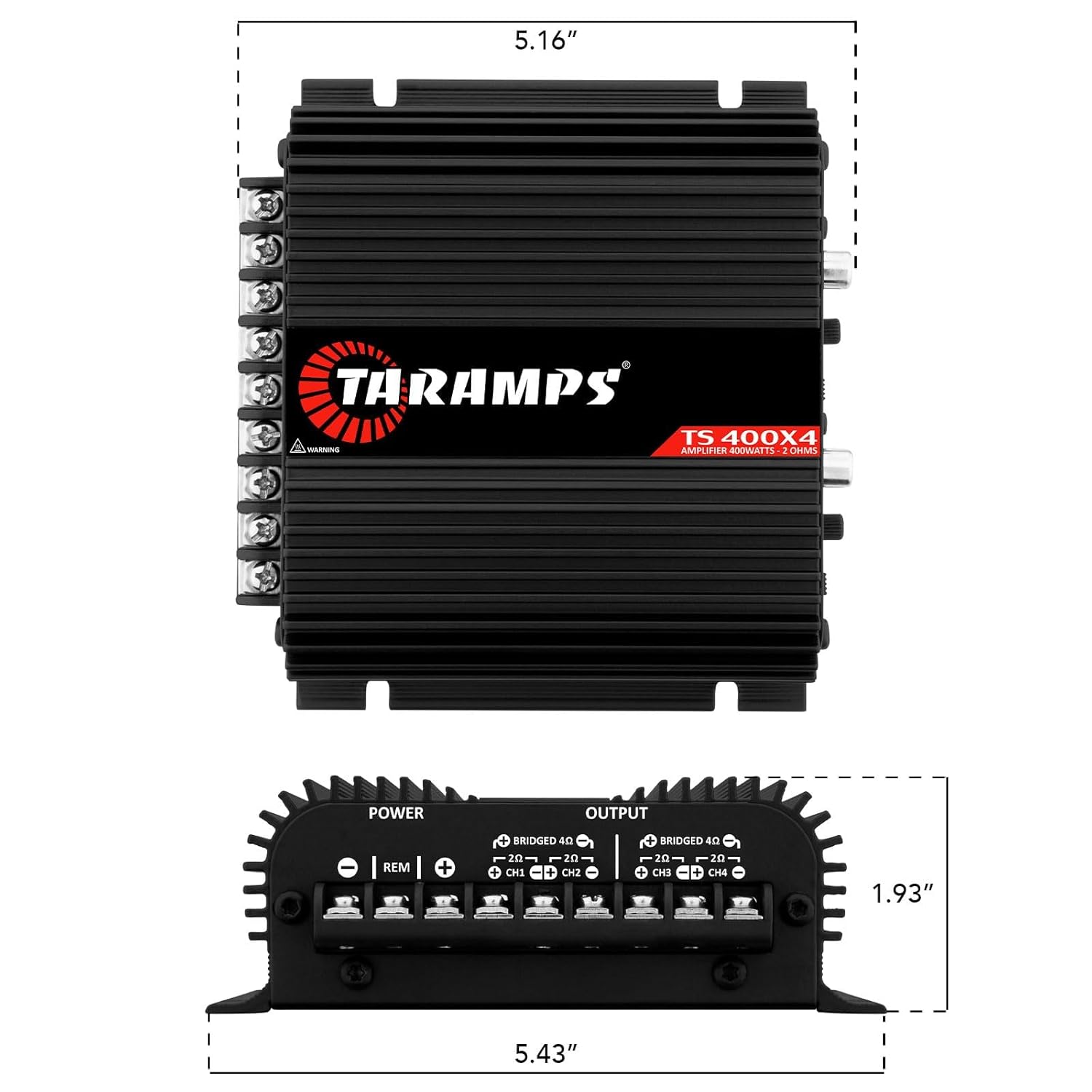

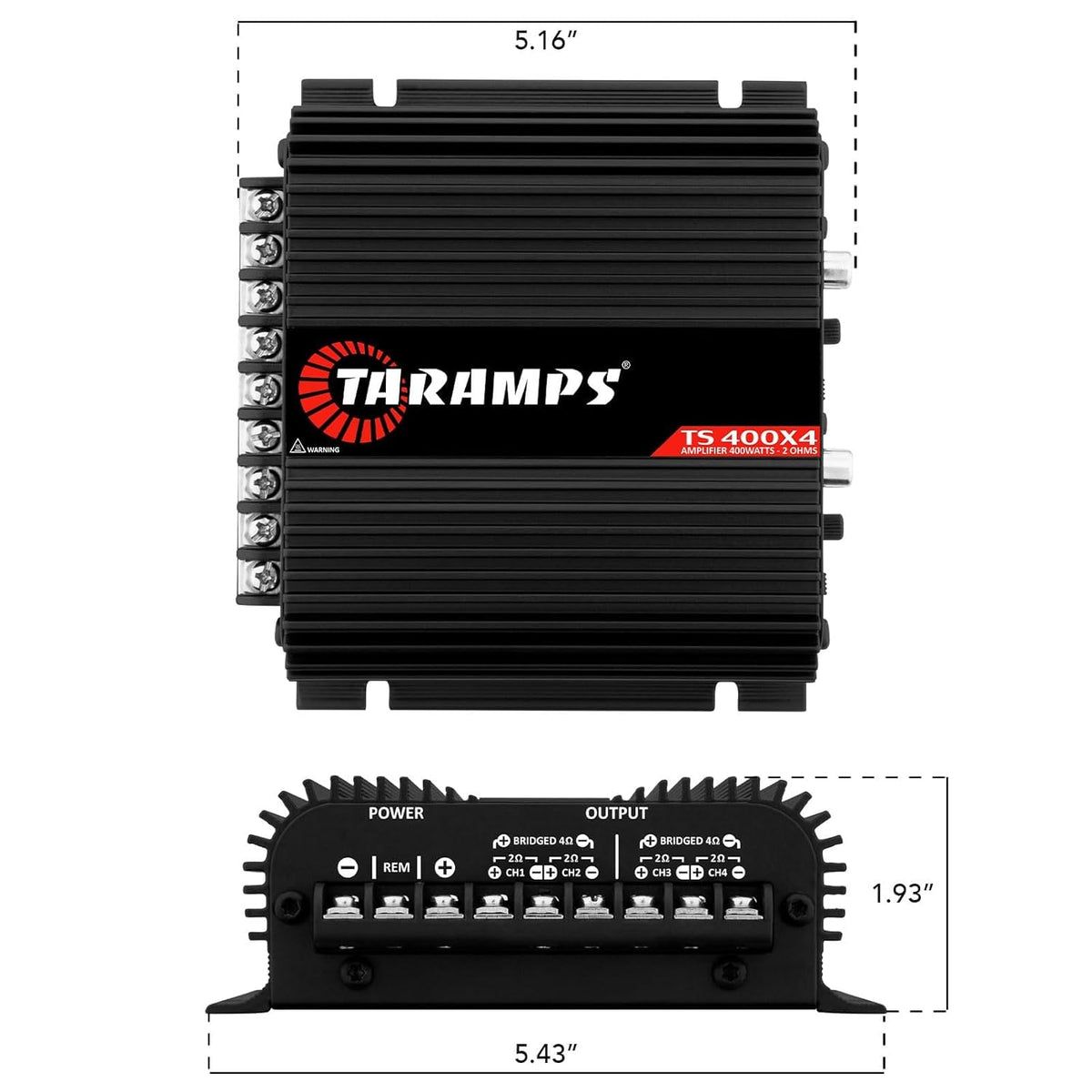

DIMENSIONS
5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm)
OPERATION CLASS
Class D
NUMBER OF CHANNELS
4
MAXIMUM POWER
@ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS) @ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS) Bridge @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)
INPUT SENSITIVITY
200mV (Vol = max.)
SIGNAL TO NOISE RATIO
> 90dB
FREQUENCY RESPONSE
(Full Range): 18 Hz to 30 kHz (-1dB)
CROSSOVER HIGH PASS (HPF)
90 Hz (-12dB/8th)
CROSSOVER LOW PASS (LPF)
90 Hz (-12dB/8th)
INPUT IMPEDANCE
22K ohms
OUTPUT IMPEDANCE
2 ohms
PROTECTION SYSTEM
Thermal and Output Short
MINIMUM SUPPLY VOLTAGE
8 VDC
MAXIMUM SUPPLY VOLTAGE
16 VDC
CONSUMPTION AT REST
0.8A
MAXIMUM MUSIC CONSUMPTION
@13,8VDC: 16.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
@13,8VDC: 33A
WEIGHT
1.322 lbs (0.6 kg)
EAN
7898556840682
CUSTOMER REVIEWS
25 five-star reviews from real buyers
Pulled from our Amazon storefront (Motiv Group) for this exact product. Names and dates as posted.
★★★★★
Awesome Budget sound!
LThis amp makes it a breeze to install anywhere, the recommended amp for my Rockford fosgate speakers (their brand) is almost 600$, I’m very happy I can get amazing sound with this little guy for a fraction of the cost. One shame is it doesn’t come with terminals to connect your wires to it, glad I had spare ones. Be ready to install bass blockers if you plan on upping the gain on your speakers because these push serious power to your speakers!
★★★★★
Solid! Compact! Powerhouse!
I had to finally replace my trusty old Rock RA 2.55 old school amp These are super rare, Zed made by Cadence in the 90’s. It was running the tweeters in my Morel Tempo Ultra 3-way + ID12 v3/d2 sub setup. The Taramps 400.2 is super compact, it can fit anywhere! Reviews show these to do almost rated power…at 1% distortion! Great frequency range and low THD specs. Super easy install, only odd thing to a dinosaur like me was the common?/bridged? speaker output wiring! All went well and fired ip just fine. Set the gains low and the tweets are happily playing on channels 1&2 at 4ohms. Plenty loud. Keeps up just fine with my Zuki Eleets 4ch (more rare old school!) and Sundown amps. :) No noise or hiss, plenty of power. Great value for the $$! If you need a super compact, powerful, bridgeable 2ch/4ch amp at a great price point do not hesitate to get you one of these!
★★★★★
Can’t beat it for the price!
Installed this in my Kenworth dump truck because my kenwood headunit would start overheating after only a couple songs at max volume. I had this thing playing for 12+ hours the other day and it hardly got warm. The amp is compact and you could mount it just about anywhere. The terminals are kinda confusing because it shares + and - posts but there is a lot of diagrams online. They are also pretty tight so it’s hard to find terminals that fit. I have Rockford 4x6 and 5.25s wired for 4ohms and used an oscilloscope to set gains and I’m beyond happy. Sound quality is next level over just using head unit power and also picked up a little more bass but the mids and highs are just loud clean and crisp. 10/10!
★★★★★
Can’t beat it for the price!
Installed this in my Kenworth dump truck because my kenwood headunit would start overheating after only a couple songs at max volume. I had this thing playing for 12+ hours the other day and it hardly got warm. The amp is compact and you could mount it just about anywhere. The terminals are kinda confusing because it shares + and - posts but there is a lot of diagrams online. They are also pretty tight so it’s hard to find terminals that fit. I have Rockford 4x6 and 5.25s wired for 4ohms and used an oscilloscope to set gains and I’m beyond happy. Sound quality is next level over just using head unit power and also picked up a little more bass but the mids and highs are just loud clean and crisp. 10/10!
★★★★★
Great Amp! Small Footprint. Super easy to install!
Perfect little amp. Installed in my vintage Porsche 911, hidden in the passenger foot board. Works perfectly. Sounds great for what it is. Driving 5.25 KS kickers in the front and a set of old school Boston Acoustic 5.25 two plate speakers in the rear. Cleaned up the sound, gave me much needed headroom and overall made the system sound like new. LP crossovers helped immensely as well, making sure not to overdrive speakers. Considering adding a subwoofer to the mix under the seat. We shall see.
★★★★★
Amazing amp for price ... sent wrong colour tho ...
Havent tried it yet BUT YOU SENT ME THE WRONG FRICKIN COLOUR ordered BLACK and ya sent me WHITE cant be bothered returning it because i need sound in my car ... UPDATE !!!! Amazing amp for price and size !!!!!! LOOKING FOR A CHEAP AMP THAT WORKS?? BUY THIS!!!! Its worth it !!!!
